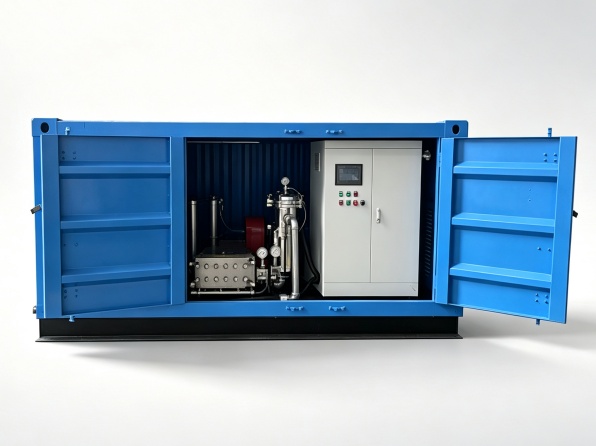

60-1400 产品图册

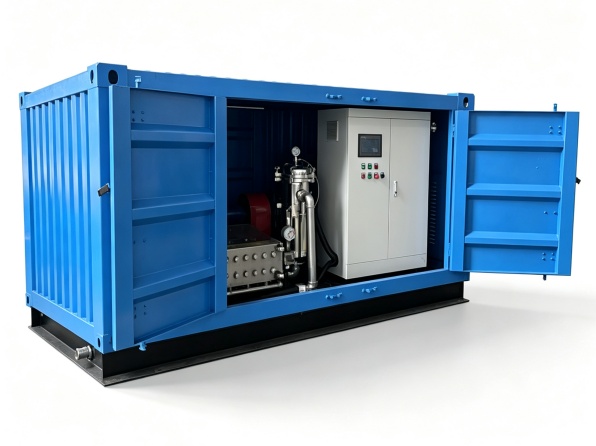

60-1400

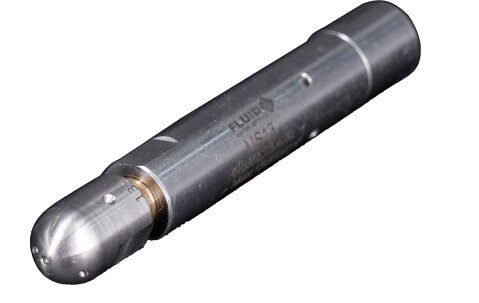

Accessories (6)

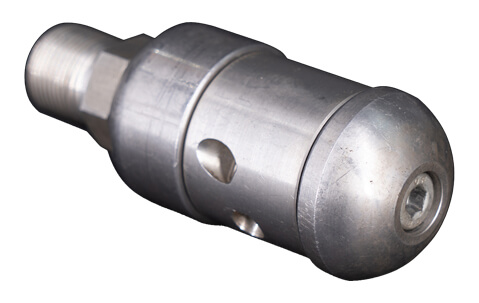

Accessories (7)

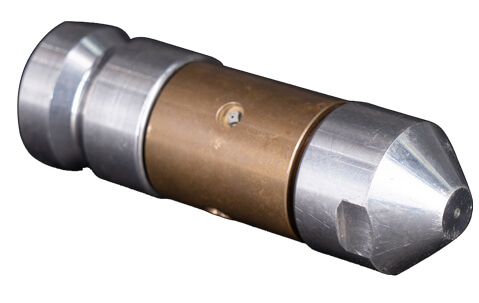

Accessories (8)

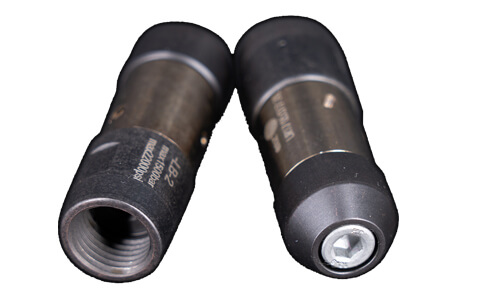

Accessories (9)
60-1400 产品图册
60-1400
Accessories (6)
Accessories (7)
Accessories (8)
Accessories (9)

1400Bar Electric Motor High Pressure Water Jet Cleaner

  • Model:GYB-5 60/1400
  • Rate pressure:1400 bar / 20000 psi
  • Water flow:60 L/min
  • Plunger diameter:24 mm
  • Plunger stroke:120 mm
  • Electric motor power:160 kw,3 Phase(Voltage can be customized)

Share:

  • Our 1400Bar electric motor high pressure water jet cleaner is a heavy-duty industrial hydro blaster built for professional industrial cleaning and maintenance. Adopting premium German WOMA pump core technology, this high-power cleaning equipment delivers stable, adjustable water pressure and consistent long-term operation performance.
  • Equipped with a stainless steel high-pressure gun (max 1500bar working pressure), dual water inlet filtration system and dual high-pressure & high-temperature safety alarms, the machine realizes efficient, safe and water-saving industrial cleaning. It effectively removes stubborn fouling, grease, rust, paint and sediment, serving as a reliable all-in-one solution for cleaning, descaling and hydro pressure testing across diverse industrial scenarios.
Main Machine
ModelGYB-5 60/1400
Rate pressure1400 bar / 20000 psi
Water flow60 L/min
Plunger diameter24 mm
Inpurt speed1480 rpm
Pump speed366 rpm
Plunger stroke120 mm
Electric motor power160kw
Accessories

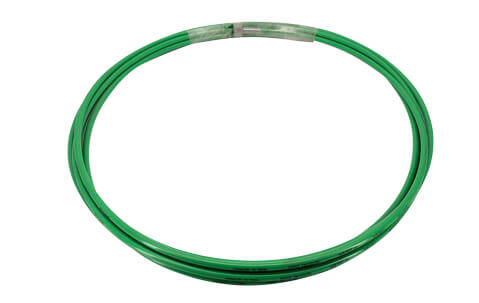

High pressure hose50 m
High pressure gun1 set
Fan-shaped nozzle2 pcs
Cylinder-shaped nozzle2 pcs

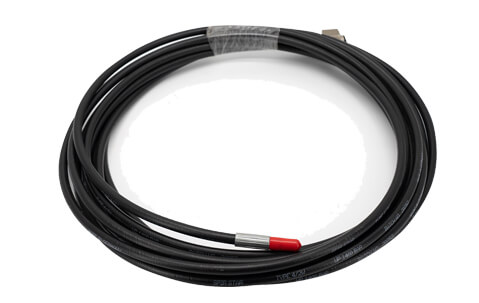

Flexible gun10 m

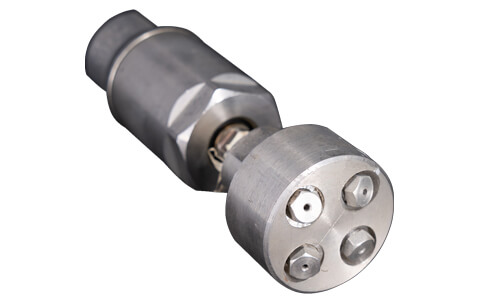

Flexible Gun Nozzle4 pcs
Steel Gun1.5 m
Steel Gun Nozzle4 pcs
Foot control Valve1 pc
Spare Parts1 set
  1. Stable & Freely Adjustable Pressure
    • The machine supports flexible pressure adjustment with ultra-stable working pressure output. It can perfectly adapt to different cleaning strength requirements from daily dirt removal to heavy-duty stubborn fouling cleaning and industrial pressure testing.
  2. Dual Intelligent Safety Protection System
    • Built-in high-pressure alarm and high-temperature alarm devices provide 24/7 real-time equipment monitoring. The intelligent protection system effectively avoids equipment damage caused by overpressure and overheating, ensures operator safety, and achieves water-saving operation.
  3. Heavy-Duty Stainless Steel High-Pressure Gun
    • Matched with high-quality stainless steel spray gun, the tool features wear resistance, corrosion resistance and impact resistance. It supports a maximum working pressure of 1500bar, fully meeting the demands of extreme heavy-duty industrial cleaning work.
  4. Dual Inlet Water Filtration System
    • Dual-stage water inlet filters are installed to effectively intercept tiny particles, impurities and sediment in the raw water. It prevents pump core blockage and internal abrasion caused by impurity deposition, protects the core components, and significantly extends the pump and equipment service life.
  5. High Power & Powerful Cleaning Capacity
    • Featured with high-power motor configuration, the equipment outputs strong high-pressure water impact force. It can quickly and thoroughly remove stubborn grease, thick fouling, rust scale, paint layers and adhesive residues, with high cleaning efficiency and no secondary damage to equipment surfaces.

This industrial high-pressure water jet cleaner is widely used in starch factories, steel mills, chemical plants, power plants, cement plants, shipyards, metallurgical plants, machinery factories, construction and food processing industries, covering multiple core scenarios:

  • Industrial Pipeline & Vessel Cleaning
  • Industrial Hydro Pressure Testing
    • Professional pressure test for industrial pipes, valves, hoses and other hydraulic equipment to detect equipment pressure resistance and safety performance.
  • Cement & Construction Industry
    • Cement plant pipeline cleaning, construction vehicle and truck cleaning, mixing drum/tank cleaning, removal of tar, cement and adhesive residues on equipment surfaces.
  • Food Processing Industry
    • Deep cleaning of food factory mixing tanks and evaporators, removal of food residues, grease and stubborn fouling to meet industrial hygiene standards.
  • Shipyard Maintenance
    • Ship hull cleaning, dirt and marine organism removal, professional rust removal and paint stripping for ship surfaces to extend ship service life.
  • Metallurgy & Machinery Industry
    • Heat exchanger and boiler descaling, warehouse and feeding tank dirt cleaning, removal of rust and oxide skin on mechanical equipment and pipeline surfaces.
  • Water Injection Operation
    • Supports professional industrial water injection work, adapting to various industrial auxiliary production scenarios.
