Product Overview

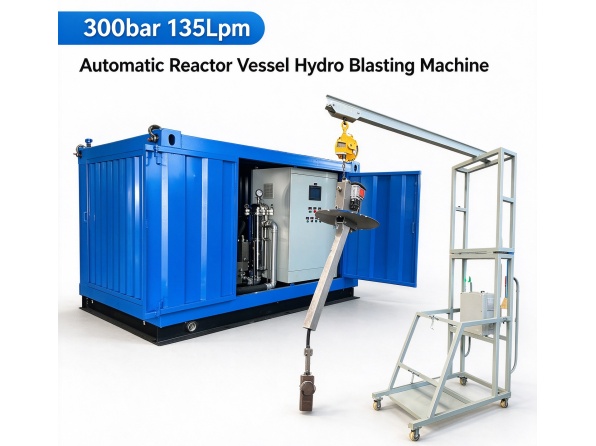

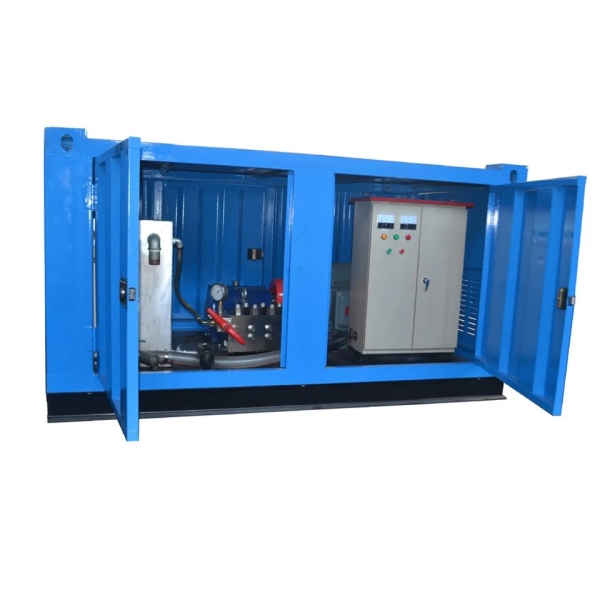

- Our 300bar 135Lpm automatic reactor tank water jet cleaning machine is a high-efficiency industrial hydro blasting equipment independently developed for industrial reactor vessels, storage tanks, heat exchangers and pipeline cleaning. Adopting German WOMA pump core technology, this automated cleaning system replaces traditional manual cleaning thoroughly, solving the pain points of low automation, time-consuming labor, low cleaning efficiency and personal injury risks in traditional industrial cleaning.
- Featuring one-button automatic operation, 360° dead-angle-free deep cleaning and 95%+ ultra-high cleaning rate, the machine’s cleaning efficiency is 10 times higher than manual work. It is widely applicable for power plants, oil & gas plants, marine engineering and other industrial scenarios, supporting rust and paint removal, residue cleaning and pipeline dredging.
Core Product Parameters
| Name | Reactor tank automatic cleaning high pressure machine |
| Model | GYB- 135/300 |
| Speed | 1480 rpm |
| High pressure pump | 500bar high pressure water jet blaster pump |
| Triple plunger pump | |
| Pump head material: stainless steel | |
| Plunger material:ceramic | |
| Rate Pressure | 300 bar / 4350 psi |
| Water flow | 135 L/min |
| Plunger dia. | 42 mm |
| Explosionproof motor power | 75 kw, 3 phase, 380v/50Hz,440v/60Hz can be customized |
We provide dual-spec industrial high-pressure water jet cleaning machines to meet diverse industrial cleaning demands:
- Main Model Spec
- Working Pressure 300bar, Water Flow 135Lpm
- Extended Pressure Range
- 500bar – 1500bar adjustable
- Extended Flow Range
- 50L/min – 100L/min optional
- Core Configuration
- German WOMA pump technology, dual water filtration system, high-pressure & high-temperature alarm system, explosion-proof system
Key Features & Advantages
Premium Core Pump Technology
- Equipped with advanced German WOMA pump technology, the machine delivers stable and reliable working pressure with flexible and precise pressure adjustment. The core pump ensures continuous stable operation under high-pressure working conditions, effectively reducing equipment failure rate and extending service life.
Intelligent Safety Protection System
- Built-in high-pressure alarm and high-temperature alarm devices. The system can automatically monitor working status in real time, trigger alarm and protect the equipment and operators once over-pressure or over-temperature occurs, realizing water conservation and safe production. It is equipped with a professional explosion-proof system, which can work stably and safely in special scenarios such as power plants, fully meeting industrial explosion-proof safety standards.
Durable Stainless Steel High-pressure Gun
- The matching high-pressure cleaning gun is made of high-quality stainless steel material, wear-resistant, corrosion-resistant and durable. It supports a maximum working pressure of 1500bar, adapting to high-intensity industrial cleaning operations and long-term continuous use.
Dual Filtration System for Longer Service Life
- Dual inlet water filtration design effectively filters tiny impurities and particulate matter in the inlet water. It avoids pump blockage and wear caused by impurities, stabilizes water quality, and greatly prolongs the service life of the core pump and the whole machine, reducing later maintenance costs.
High-efficiency Automatic Cleaning Without Dead Angles
- Support one-button automatic start-up. The multi-positioning mechanism accurately sends the 3D cleaning device into the reactor tank. The high-pressure water jet forms horizontal and vertical composite rotation torque through the automatic rotating nozzle. Equipped with a flexible telescopic rod, it can intelligently avoid internal obstacles of the tank during operation, realizing 360° all-round dead-angle-free deep cleaning.
Working Principle
After one-button start-up, the intelligent positioning system precisely delivers the 3D rotating cleaning nozzle to the inside of the reactor vessel. The high-pressure pump outputs stable high-pressure water flow. The nozzle realizes horizontal rotation through water jet power, and the water flow rotational torque drives vertical plane rotation simultaneously. Cooperating with the flexible telescopic rod’s obstacle avoidance and telescopic movement, the equipment completes composite three-dimensional motion, thoroughly stripping and flushing residual dirt, scale, oil stains and attachments on the inner wall of the tank, achieving efficient and thorough cleaning.
Wide Application Scenarios
This industrial high-pressure water jet cleaning machine is versatile for multiple industrial cleaning fields:
- Industrial equipment: Reactor vessels, storage tanks, heat exchangers, condensers, various industrial pipes & tubes
- Energy industry: Power plant explosion-proof cleaning, oil & gas plant pipeline residue cleaning
- Marine engineering: Marine equipment rust removal, paint stripping and dirt cleaning
- Chemical & manufacturing: Industrial tank internal residue cleaning, pipeline dredging and scale removal
