Description
- Our reactor vessel tank cleaning machine delivers high-pressure water jet cleaning for industrial reactor vessels and storage tanks. It removes hardened deposits, scaling and residues from tank interiors without harsh chemical solvents. Available in multiple pressure grades from 180 bar up to 1000 bar, this system meets heavy-duty industrial cleaning requirements.
Parameters
| Common parameters of High pressure reactor tank cleaning machine | ||||
| Model | GYB-1 50/180 | GYB-1B 85/150 | GYB-2 85/500 | GYB-5 80/1000 |
| Pressure | 180 bar | 150 bar | 500 bar | 1000 bar |
| Water flow | 50 LPM | 85 LPM | 85 LPM | 80 LPM |
| Engine drive | Electric motor 15kw | Electric motor 22kw | Electric motor 90kw | Electric motor 160kw |
| Standard configuration | ||||

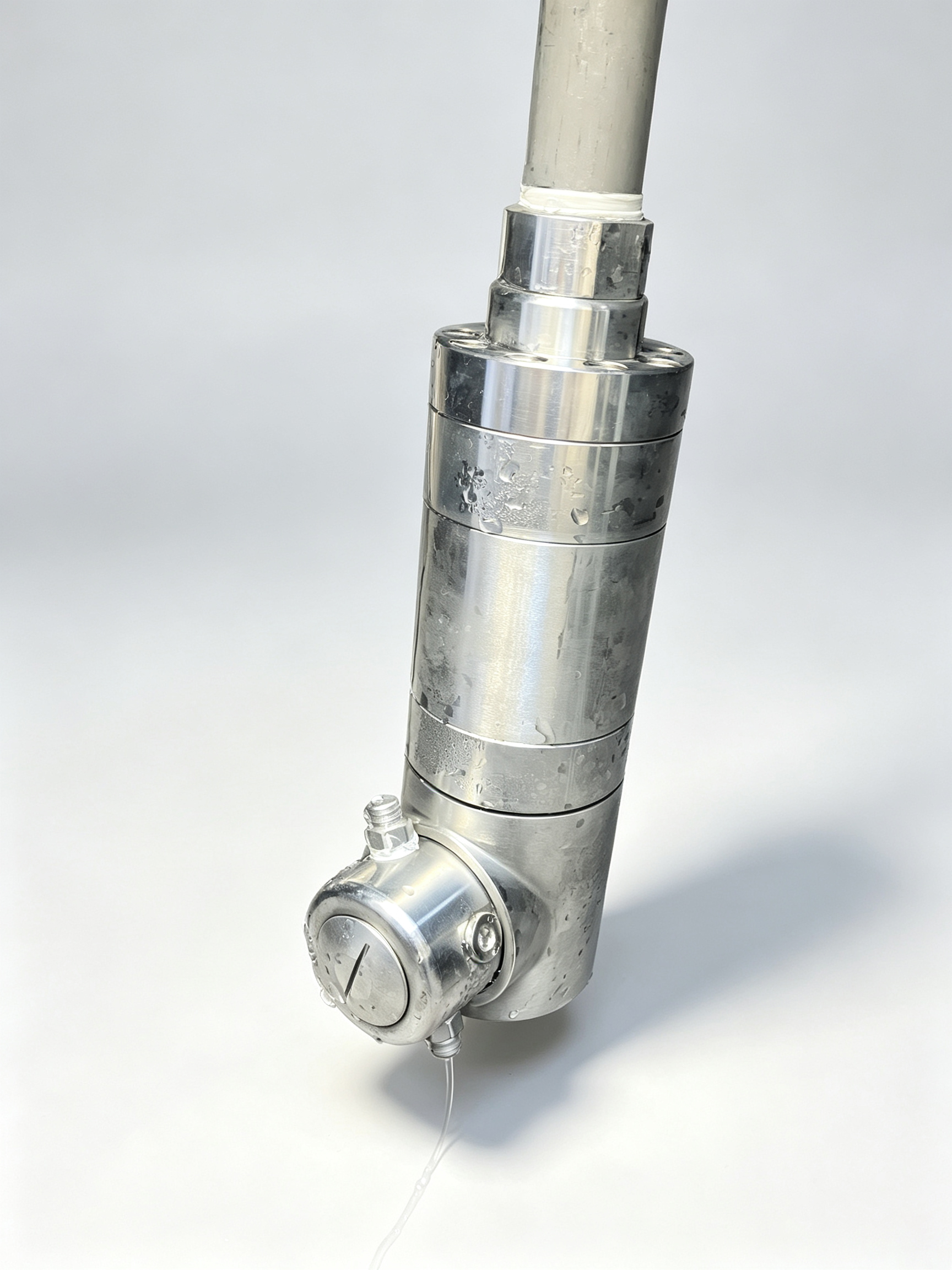

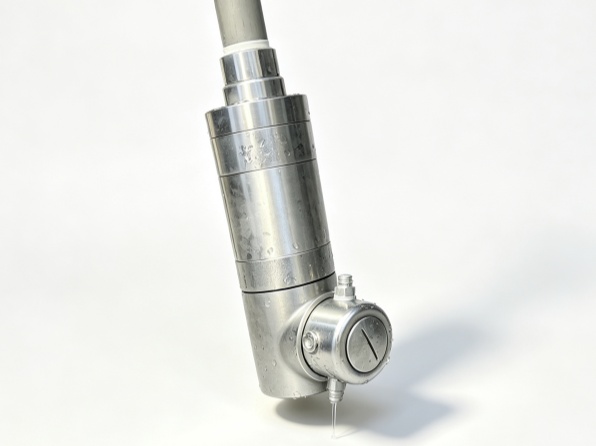

| High pressure hose*50M | 3D rotating nozzle*1pc | |||
| Flange*1pc | High pressure pump spare parts*1set | |||
| Optional configurations and services | ||||
| Tank cleaning is a customized device. Welcome contact us for more specific information | ||||
Working Principle

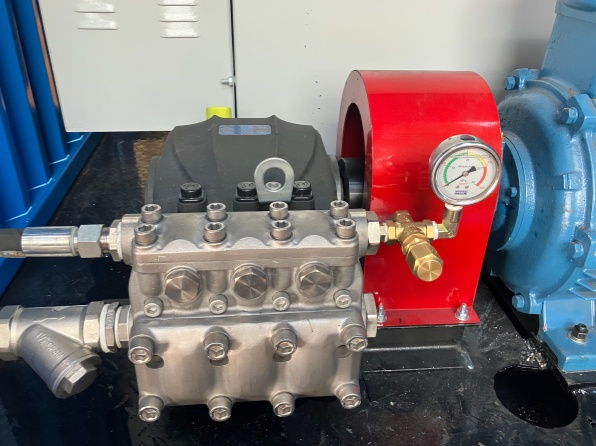

This system uses a high-pressure pump to pressurize tap water to ultra-high pressure. Normally, the working pressure reaches 1000–1400 bar or above. Pressurized water exits through custom-engineered nozzles and forms multiple high-energy, high-speed micro water jets.
Acting like dozens of “water knives,” these jets deliver strong impact and shear force. They strip and break hard deposits from reactor inner walls, agitators, baffles, thermometers and other built-in components.
Core Advantages
- High Efficiency & Complete Cleaning
- Reaches every corner of the vessel interior. It removes hard deposits from walls, agitators and baffles in one pass.
- Safe & Eco‑friendly
- Uses pure high-pressure water only. No chemical solvents, no hazardous waste, safer for operators and the plant.
- Non‑destructive Cleaning Performance
- The water jet strips deposits without scratching or damaging reactor walls and metal components.
- Lower Comprehensive Operating Cost
- Reduces manual labor, shutdown time and chemical disposal fees. Customers usually see fast payback on cleaning costs.
- High‑level Automation Compatibility
- Works with robotic tank cleaning systems and remotely controlled nozzles. Operators stay outside the vessel during cleaning.
Main Application Industries
This reactor vessel tank cleaning machine is widely used in petrochemical, pharmaceutical, food processing, dyestuff and resin synthesis sectors. It is suitable for cleaning and maintenance of reaction kettles, storage tanks, heat exchangers and similar process vessels.
