Product Overview

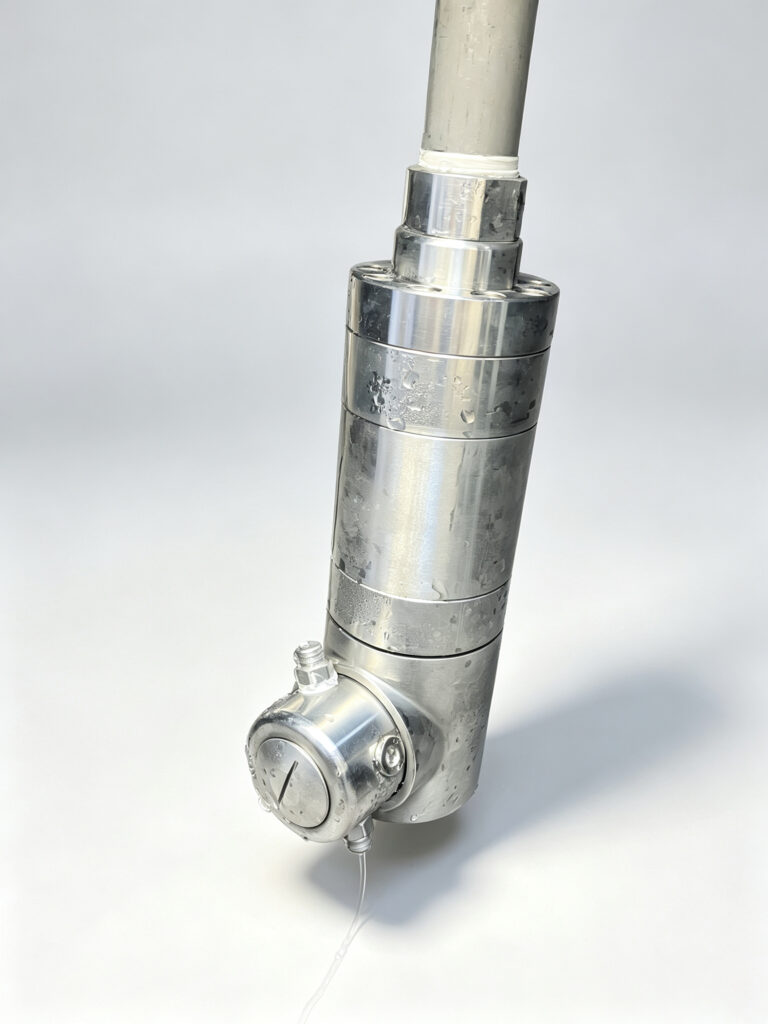

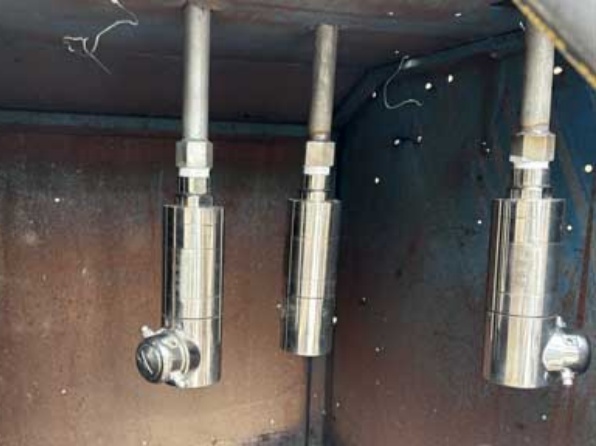

Our 3D Rotary Reactor Cleaning Nozzle is independently developed by Guangyuan Cleaning Equipment. Specifically, it is a self-rotating high-pressure jet head designed for chemical reactors, pressure vessels and mixing tanks.
In addition, the dual-axis rotation forms a full spherical spray trajectory, which eliminates blind spots inside complex reactor linings, baffles and stirring structures.
Therefore, it is widely adopted for removing polymer buildup, hardened scale, paint, resin and viscous chemical residues in chemical, pharmaceutical and new material production.
Why Choose Our 3D Rotary Reactor Nozzle?
Traditional static spray nozzles or manual lancing cleaning have obvious limitations. For instance, static jets leave unclean dead zones, while manual hydroblasting brings high labor cost and chemical exposure risks for operators. To solve these pain points, our 3D rotary nozzle runs by water jet reaction force, no extra motor required. Furthermore, it maintains stable high impact force across the whole vessel interior.
- Full 3D spherical rotation, 360° all-direction coverage
- Gear-driven rotary structure, stable under high pressure
- Stainless steel material, corrosion-resistant for chemical media
- Compact size, easy to feed through standard reactor manholes
- Compatible with our high-pressure cleaning system and IBC washing line
Working Principle
When high-pressure water flows into the nozzle body, the jet reaction torque drives the internal gear set. As a result, the spray head carries out both autorotation and revolution at the same time.
In this way, the water jet sweeps along a spherical path inside the reactor vessel. Even uneven surfaces, baffles and bottom sediment areas receive consistent high-impact scouring.
Moreover, you can match different flow and pressure configurations according to reactor volume and residue type.
Application Scenarios
First of all, this nozzle fits batch chemical reactors that need regular residue stripping.
Besides, it works well for pharmaceutical vessels, coating reaction kettles and adhesive mixing tanks.
Finally, it can be used as a spare cleaning head matched with our automatic IBC tank cleaning system for flexible container & reactor cleaning projects.
Compatible System Matching
Notably, this 3D reactor cleaning nozzle can work together with our high-pressure water jet unit and automatic cleaning platform.
Correspondingly, customers can buy the nozzle separately or purchase a complete turnkey reactor cleaning solution.
