Product Overview

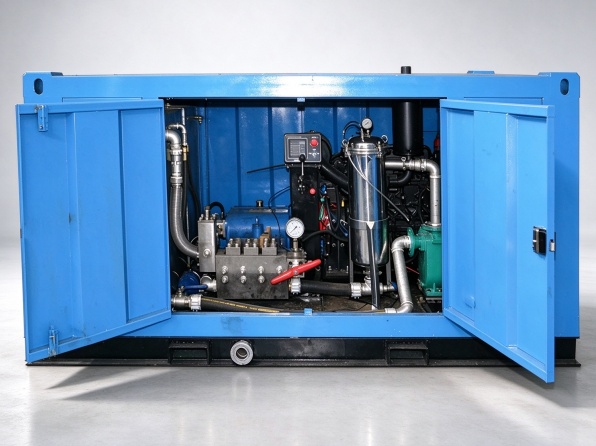

Our high pressure hydro test pump is essential hydro testing equipment widely applied in oil and gas, manufacturing, plumbing, and construction industries. It verifies pipelines, pressure vessels, valves and all pressure-containing components can safely withstand specified operating pressure, eliminating risks of leakage, rupture and pressure failure.
Our high pressure hydro test pump is an upgraded optimized series independently designed and manufactured by our factory. Retaining core advantages of traditional pressure test pumps, it delivers industrial stability, durability and portability for all water pressure testing jobs.
This upgraded hydro test pump features a high degree of industrial standardization, modularization and generalization. It has ultra-long service life, stable and consistent working performance under long-term high-pressure operation. Unlike bulky traditional test pumps, this model is lightweight and flexible in movement, convenient for on-site deployment and operation in complex industrial environments.
Products parameters
| Inpurt speed (r/min) | 1480 | Stoke(mm) | 95 | |||
| RIO:i | 3.65 | Pump Speed(r/min) | 405 | |||
| Power(kw) | 30 | 37 | 45 | 55 | 75 | 90 |
| Water Flow | Rate Pressure | |||||
| L/min | bar | |||||
| 40 | 370 | 460 | ||||
| 50 | 300 | 360 | 450 | |||
| 57 | 260 | 320 | 400 | 500 | ||
| 65 | 230 | 280 | 350 | 450 | ||
| 75 | 200 | 250 | 300 | 380 | 500 | |
| 85 | 170 | 220 | 260 | 340 | 450 | 500 |
| 102 | 150 | 180 | 220 | 280 | 360 | 430 |
| 135 | 110 | 140 | 170 | 210 | 280 | 330 |
| 170 | 90 | 110 | 140 | 170 | 240 | 280 |
Unique Automatic Dual Flow Rate Design
Specially customized for professional water pressure test process requirements, the pump adopts a dual-flow automatic switching system to greatly improve testing efficiency and accuracy:
- Low-pressure Stage (Filling Stage)
- In the initial pressure test stage, the pump runs with a large flow rate, realizing fast liquid filling and rapid pressure rise. It effectively shortens the overall pressure test cycle and improves on-site working efficiency.
- High-pressure Stage (Pressure Holding Stage)
- When the pressure exceeds 1.6Mpa (supporting lower pressure customized adjustment), the system automatically reduces the flow rate. The slow and stable pressure rise ensures smooth, precise and safe pressure testing process, avoiding pressure surge affecting test results.
Wide Pressure Testing Range
Support full-range water pressure testing of any pressure value below the rated discharge pressure. The adjustable pressure threshold and flexible flow switching mode make it adaptable to diverse testing standards of pipelines, vessels, valves and other pressure-bearing parts in different industries.
Application Scenarios
This high-pressure hydro test pump is widely applicable for pressure bearing inspection and hydraulic testing in multiple fields:
- Oil & Gas industry: Pipeline and pressure vessel pressure testing
- Manufacturing industry: Industrial valve, pressure equipment hydraulic inspection
- Plumbing engineering: Water pipe and pipeline pressure resistance test
- Construction industry: Building pressure pipeline and supporting facility testing
Product Strengths Summary
- Lightweight & movable, easy for on-site construction operation
- Upgraded industrial design, stable performance and long service lifespan
- Automatic dual flow rate switching, efficient and precise testing
- Adjustable pressure threshold, wide application range
- Full-compliant with industrial hydraulic testing standards
