Introduce

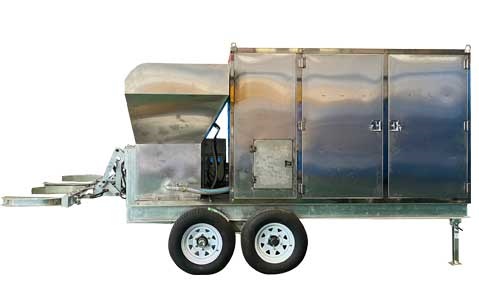

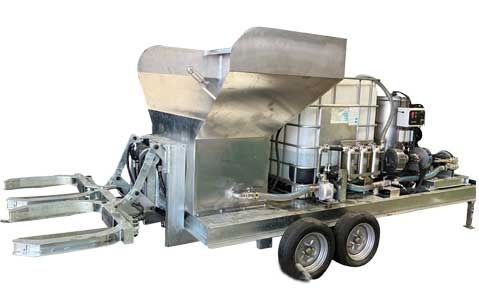

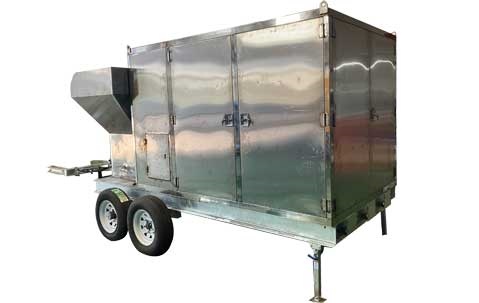

Our automatic garbage bin cleaning system delivers an efficient, energy-saving and intelligent cleaning solution for waste bins. Nowadays, as sanitation standards keep rising, regular garbage bin cleaning has become essential at waste transfer stations, residential complexes, hotel kitchens and industrial canteens. However, traditional manual cleaning is labor-intensive, water-wasting, and often leaves stubborn residues behind. To solve these pain points, our newly developed automatic high-pressure cleaning system integrates a hydraulic lifter, a hot water heater, and a 3D rotating nozzle. As a result, it can provide fully automated, high-temperature, high-pressure and omni-directional cleaning for waste bins.
Key features

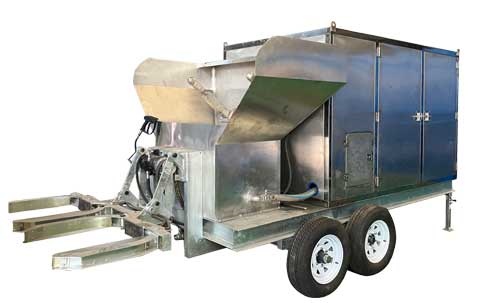

1. Hydraulic Bin Lifter
Firstly, this unit works seamlessly with standard bins, including 120L, 240L and 660L models. It adopts smooth and quiet hydraulic lifting fitted with an anti-drop mechanism and limit switches. Most importantly, no manual lifting is required; therefore, it significantly cuts down labor intensity for your sanitation team.
- Compatible with standard bins: 120L, 240L, 660L, etc.
- Smooth and quiet hydraulic lifting with anti-drop mechanism and limit switches.
- No manual lifting required – significantly reduces labor intensity.
2. Hot Water Heating System
In addition, it comes with an integrated high-power heater. This system raises water temperature to 60°C–85°C. Since hot water effectively removes grease, sugar residues, stubborn dirt, and bacterial biofilm, you can pair it with eco-friendly detergents for superior deodorizing and degreasing results.
- Integrated high-power heater raises water temperature to 60°C–85°C.
- Hot water effectively removes grease, sugar residues, stubborn dirt, and bacterial biofilm.
- Works ideally with eco-friendly detergents for superior deodorizing and degreasing.

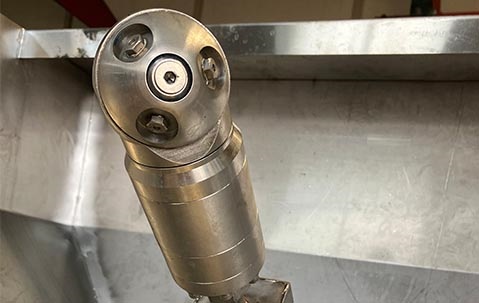

3. 3D Rotating Nozzle for High-Pressure Cleaning
Furthermore, the core cleaning part is our 3D rotating nozzle. It delivers simultaneous 360° horizontal rotation and 0–120° vertical oscillation, which ensures full coverage inside the bin and lid. Meanwhile, it runs at an operating pressure of 150–200 bar and a flow rate of 30–50 L/min. Besides, we use wear-resistant stainless steel nozzles that support adjustable spray patterns, including fan and jet modes.
- Simultaneous 360° horizontal rotation and 0–120° vertical oscillation ensures full coverage inside the bin and lid.
- Operating pressure: 150–200 bar; flow rate: 30–50 L/min.
- Wear-resistant stainless steel nozzles with adjustable spray pattern (fan / jet).
4. Fully Automatic PLC Control
Moreover, the machine uses fully automatic PLC control for simple operation. It supports one-button automatic workflow: lifting → lid closing → high-pressure hot water cleaning → draining → reset. In addition, users can freely adjust cleaning time, water temperature, rotation speed, and other parameters to match different cleaning tasks.
- One-button operation: lifting → lid closing → high-pressure hot water cleaning → draining → reset.
- Cleaning time, water temperature, rotation speed, and other parameters are adjustable.
5. Wastewater Recycling System (Optional)
Finally, we offer an optional wastewater recycling module. If you add the sedimentation tank or filtration circulation system, it will greatly minimize water consumption and reduce environmental pollution.
- Optional sedimentation tank or filtration circulation system minimizes water consumption and pollution.
Applications
This bin washer fits multiple commercial and municipal scenarios. In general, it is widely used in the following locations:
- Waste transfer stations
- Large commercial complexes
- School / hospital / factory canteens
- Hotel kitchens and restaurant clusters
- Residential community sanitation yards
Beyond standard configuration, the system can be customized with additional features such as steam heating, chemical injection, or remote monitoring. Accordingly, if you need technical specifications or a quotation, please contact us.
