Description

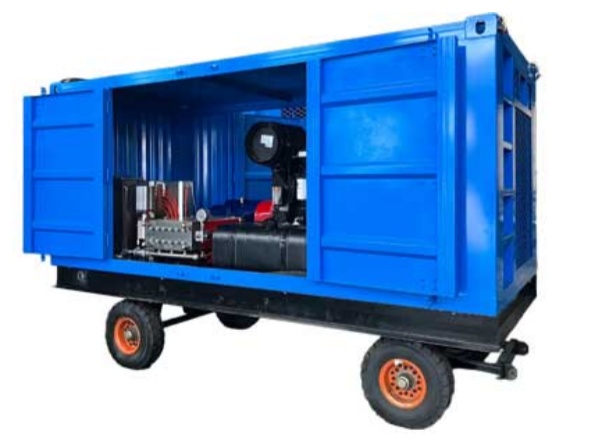

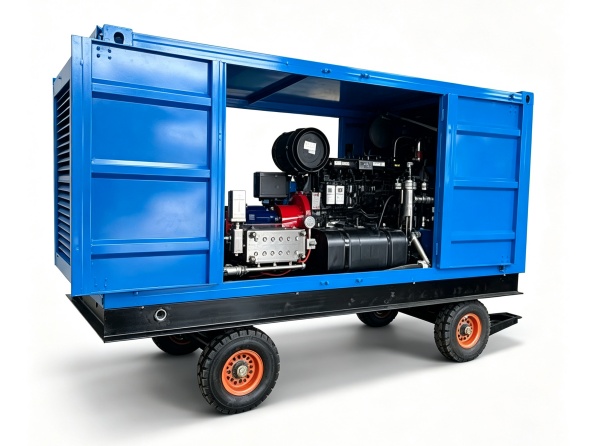

- The heat exchanger cleaning machine adopts German WOMA pump technology. This 1500 bar water jet blaster delivers stable and easily adjustable working pressure. It comes with high-pressure and high-temperature safety alarms. The stainless-steel high-pressure gun supports maximum 1500 bar operation.
- Dual inlet water filters trap fine particles. They protect the pump and extend equipment service life. With strong cleaning power, this unit fits cleaning and maintenance tasks for refineries, chemical plants, steel mills, starch factories and power plants.
Parameters
| Main technical parameters | |
| Model | GYB-5 85 /1500 |
| Rate Pressure | 1500 bar / 21750 psi |
| Water flow | 85 L/min |
| Plunger diameter | 28 mm |
| Inpurt speed | 1480 rpm |
| Pump speed | 366 rpm |
| Plunger stroke | 120 mm |
| Diesel engine drive | 291 kw |
| Accessories | |

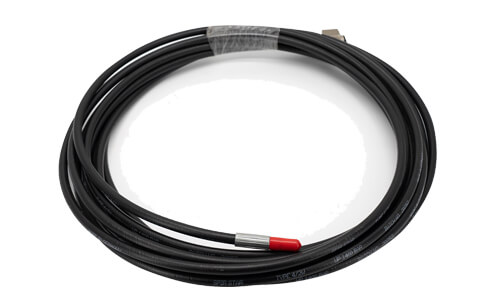

| High pressure hose | 50 meters |
| High pressure gun | 1 set |

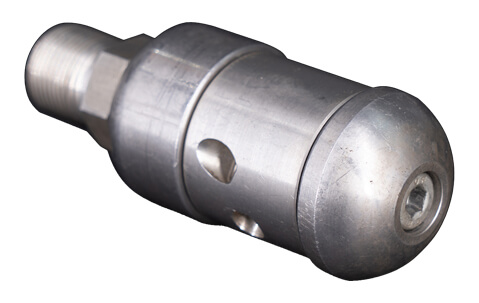

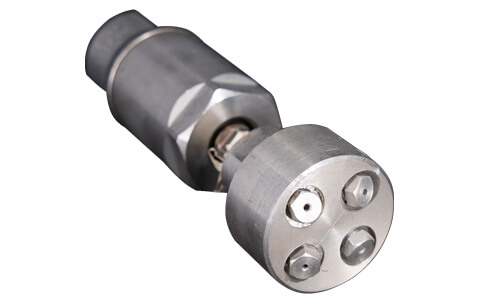

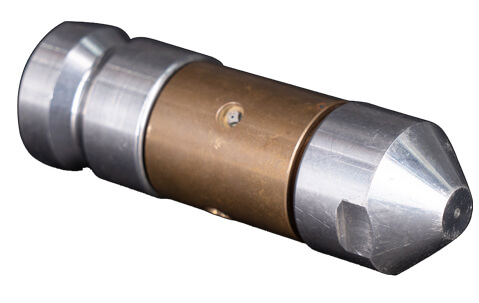

| Fan-shaped nozzle | 2 pcs |
| Cylinder-shaped nozzle | 2 pcs |
| Flexible gun | 10 M |

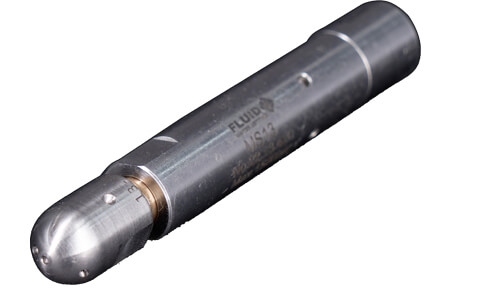

| Flexible Gun Nozzle | 4 pcs |
| Steel Gun | 1.5 M |
| Steel Gun Nozzle | 4 pcs |
| Foot control Valve | 1 pc |
| Spare Parts | 1 set |
Application Fields
- Heat exchanger, condenser, pipe, reactor & tank cleaning
- Hydrostatic pressure test for pipes, valves and hoses
- High‑pressure water injection
- Cement plant: pipe cleaning, grease & fouling removal
- Construction: mixer tank, tar, cement & adhesive cleaning
- Food plant: mixing tank, evaporator, grease & residue cleaning
- Shipyard: rust, paint & marine organism removal for hulls
- Metallurgy: heat‑exchanger cleaning, descaling & dirt removal
- Machinery factory: tank, pipe, rust and oxide‑scale cleaning
