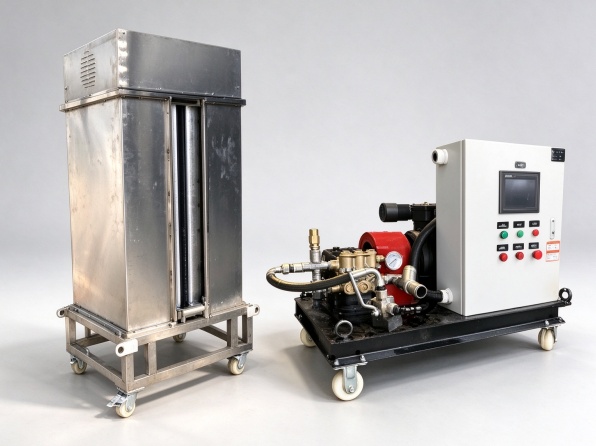

Product Overview
Our industrial-grade Plate Heat Exchanger Cleaner is professionally customized for plate heat exchanger daily maintenance and overhaul. Adopting pure physical high-pressure water jet cleaning technology, it perfectly solves the fouling problems of plate heat exchangers in multiple industries. Equipped with matched high pressure and ultra-large water flow, this cleaning machine efficiently removes stubborn limescale, oil sludge, sediment and biological fouling without using corrosive chemical solvents.
Different from traditional chemical cleaning, our chemical-free cleaning method will not corrode heat exchanger plates and gaskets. It effectively restores the original heat transfer efficiency of equipment, reduces factory maintenance downtime and maintenance costs, and greatly extends the service life of stainless steel and titanium alloy plate heat exchangers. With heavy-duty industrial configuration and automatic operation design, it supports long-hour continuous on-site cleaning for various industrial scenarios.
Parameters & Power Configuration
| Model | GYB-1B 135/150 | |
| High pressure pump | Pressure | 15 Mpa/150 bar/2175 Psi |
| Flow rate | 135 L/min | |
| Input speed | 1480 r/min | |
| Plunger diameter | 18 mm | |
| Plunger stock | 65 mm | |
| Pump speed | 405 r/min | |
| Electric motor | Power | 37 kw; 3 phase; |
| Voltage | Can be customized | |
| Filtration system | First stage 80 mesh; | |
| Cleaning line | Dimention | 900*650*1740mm |
| Power | 600w | |
| Cleaning Width | 200-1000mm | |
| Cleaning Type | Direct-spray flat fan nozzle single-sided cleaning | |
| Dimension | 1200*850*900 mm ; 900*650*1740 mm | |
| Weight | 600kg | |
High-Pressure Power Unit
- Max Working Pressure
- 150bar high stable pressure, generating strong impact force to crush and strip deep-seated scale, oil dirt and various deposits on plate surfaces
- Rated Flow Rate
- 135Lpm large water flow, flushing all detached dirt thoroughly in one pass, avoiding repeated cleaning cycles and improving overall cleaning efficiency
- Power Drive
- 37kW industrial electric motor, providing sufficient and stable power support for the high-pressure pump group, ensuring full-load stable operation for a long time
Professional Cleaning Structure Design
- Cleaning Width
- 1-meter standard cleaning width, fully compatible with most commercial standard plate heat exchanger plate packs, realizing full coverage cleaning
- Nozzle Layout
- Equipped with 11 fan-shaped direct-spray nozzles, single-sided penetrating water flow design that runs through the entire plate gap channel
- Fan-Shaped Spray Technology
- The water flow spreads in a fan shape, forming a large uniform contact area, eliminating cleaning dead zones on corrugated plate surfaces
- High-Penetration Direct Spray
- Straight high-pressure water jet with strong penetrating power, effectively clearing stubborn blockages hidden in plate gaps and dead corners
Outstanding Product Advantages
Efficient & Time-Saving Descaling
The dual advantage of high pressure and large flow realizes one-time thorough cleaning, greatly shortens the equipment cleaning cycle, improves equipment turnaround efficiency, and avoids repeated cleaning operations that waste time and labor costs.
Zero Damage to Heat Exchanger Equipment
Pure physical water jet cleaning replaces traditional acid-base chemical cleaning. It will not cause corrosion, wear or aging damage to heat exchanger corrugated plates and rubber gaskets, effectively protecting equipment accessories and prolonging the service life of plate heat exchangers.
High Automation & Low Labor Cost
Matched with stainless steel frame and blue belt conveyor/roller system, the machine supports automatic feeding and discharging. It minimizes manual intervention, reduces labor intensity, and is suitable for large-scale and long-term factory routine maintenance work.
Safe & Eco-Friendly Cleaning
Chemical-free cleaning formula, no chemical residue and no environmental pollution. It meets industrial environmental protection standards, and avoids equipment deterioration and secondary pollution caused by chemical cleaning agents.
Wide Application Scenarios
This industrial plate heat exchanger cleaning machine is widely used for periodic maintenance and deep cleaning of plate heat exchangers in multiple industries, especially suitable for severe fouling and difficult manual cleaning scenarios:
- Petrochemical & Industrial Cooling System
- Electric Power & Power Plant Industry
- Food Processing & Beverage Industry
- HVAC & Central Air Conditioning System
- Steel & Heavy Industrial Manufacturing
It adapts to the cleaning and maintenance of stainless steel and titanium alloy plate heat exchangers of various specifications, perfectly restoring equipment heat exchange performance and stable operating efficiency.
