Description

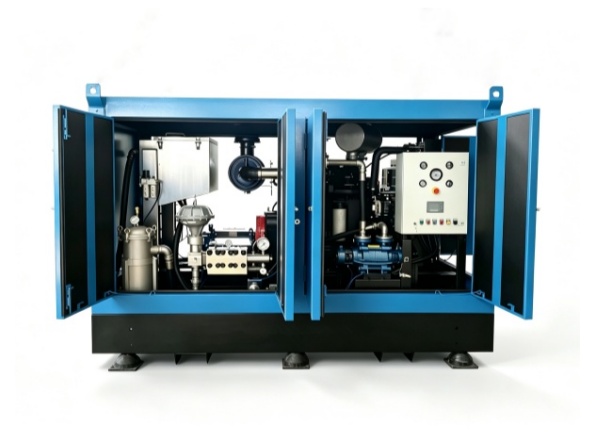

- The 2500bar Ultra Hydro Jetting Equipment for rust remove is a very powerful piece of equipment suitable for a variety of heavy industrial and commercial cleaning tasks. 2500bar (approximately 36,000 psi) pressure easily removes stubborn rust, coating and other dirt.
- The 2500bar Ultra Hydro Jetting Equipment is particularly suited for marine applications, such as ships, offshore platforms, and port infrastructure, where rust and corrosion are common due to constant exposure to saltwater and harsh environmental conditions. By utilizing high-pressure water instead of abrasive techniques, it minimizes the risk of damage to the underlying metal, ensuring a thorough and efficient rust removal process.
Parameters
| Main technical parameters | |
| Model | GYB-6 35/2500 |
| Water flow | 35 L/min |
| Rate Pressure | 2500 bar /36000 psi |
| High pressure pump | Germany WOMA brand pump |
| Pump head material: Stainelss steel | |
| Variable frequency motor drive | |
| Remote control start and stop | |
| Variable frequency motor drive | |
| Plunger diameter | 22mm |
| Pump Speed | 366 rpm |
| Electric motor drive | 132kw, 3 phase |
| Diesel engine drive | 225kw, 6-cylinder |
| Oil consumption | 40 L/h |
| Accessories | |
| High pressure hose | 50 meters |
| Hand push cleaning device | 1set |
| High pressure gun | 1set |
| Four holes rotating nozzle | 1pc |
| Spare Parts | 1set |
Product Performance
- For the machine, pump is use the tech. of Germany WOMA.
- Pressure is stable and reliable, easy to be adjust.
- It is installed with a high-pressure alarm and high-temperature alarm for water conservation.
- Has two filter, for inlet water filter out. Could be filter out the tiny particles from the inlet water. Good for long-working life of the pump.
- Has explosion-proof system, could explosion-proof if you use this machine on chemical plant.
- Operating at a pressure of 2500 bar/40000psi, this hydro jetting machine utilizes high-pressure water to effectively strip away rust and restore metal surfaces to their original condition.
- It can meet the special needs of cleaning partitions in power plants, removing paint in automobile factories, and removing various hard-to-clean hard scales in the petrochemical industry.
- It has rich configurations and can meet the cleaning needs of all walks of life.
- It is very effective in cleaning long pipes or seriously blocked pipes.
Applications
- Marine rust paint removal
- Concrete cutting
- Concrete surface roughening
- Industrial pipe/tank cleaning
- Building wall cutting
