Product Overview

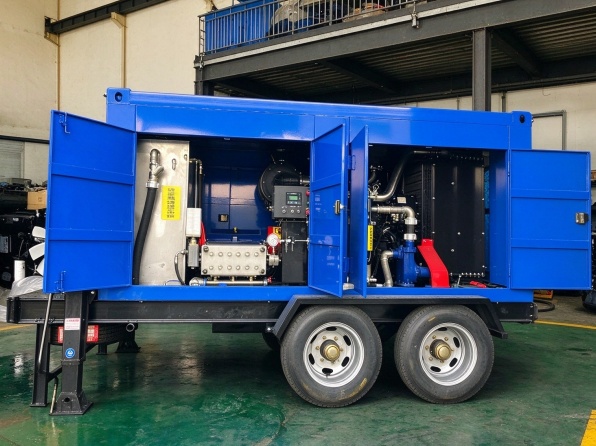

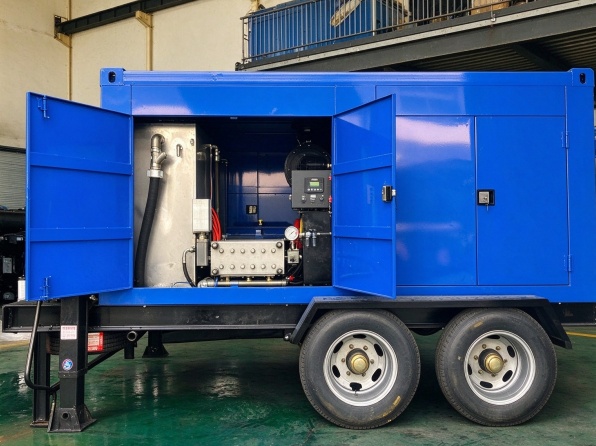

Our GYB-5-85/1500 1500 bar water jet cleaning machine is a heavy-duty industrial hydro blaster built for demanding high-pressure water jet cleaning jobs. Powered by a reliable diesel engine, this trailer-mounted high pressure cleaner delivers stable 1500bar pressure and 85LPM water flow. It adopts mature German KAMAT pump technology, with stainless steel pump head and nickel-plated plunger, supporting forced water cooling for long-hour continuous operation.
This diesel water jet cleaner works differently from chemical cleaning. It uses pure high-pressure water physical cleaning. No chemical additives are required during operation, so it is pollution-free and eco-friendly. This 1500 bar water jet cleaning machine is widely used in chemical plants, power plants, sugar factories, starch factories, steel mills and shipyards for pipe descaling, rust & paint removal, heat exchanger, condenser, boiler, tank and kettle cleaning.
Core Advantages
This 1500 bar hydro blaster comes with these outstanding features:
- Advanced high-pressure plunger pump with German KAMAT technology, stable performance and long service life
- Stainless steel pump head and nickel-plated plunger, forced water cooling structure
- Imported ductile iron water seal from the US, good heat dissipation, not easy to deform
- Forced lubrication for crankcase, lower operating temperature and reduced friction

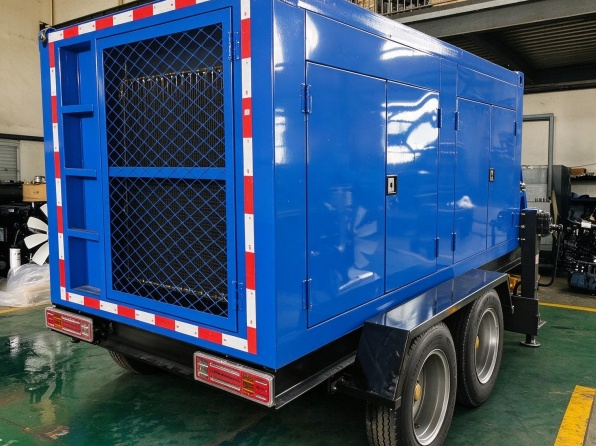

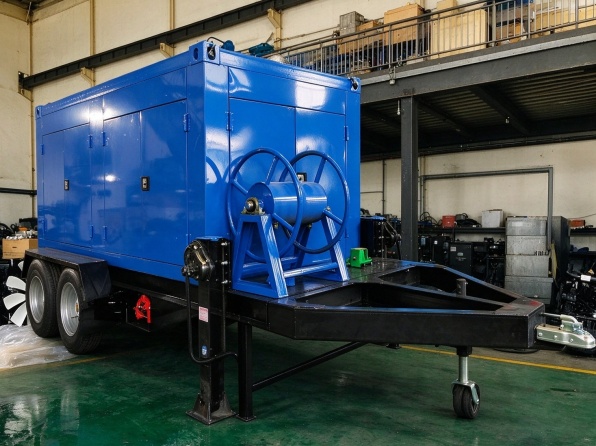

- Trailer mobile design, easy to transport and deploy on-site
- Cold water high-pressure cleaning, green and non-polluting, no chemical agents needed

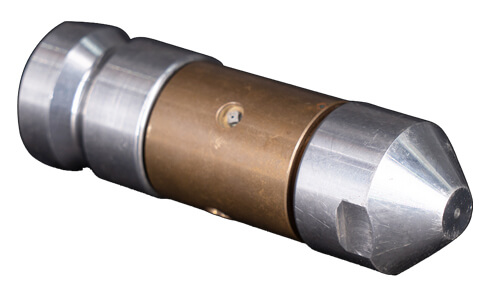

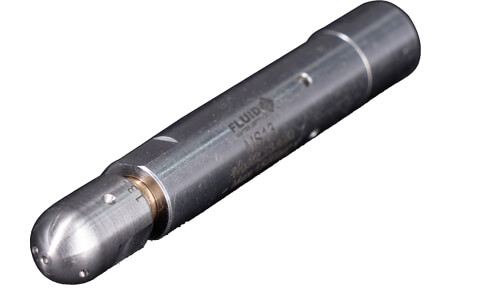

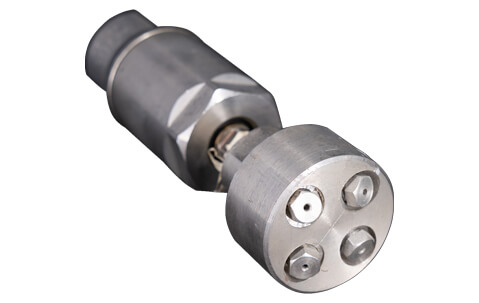

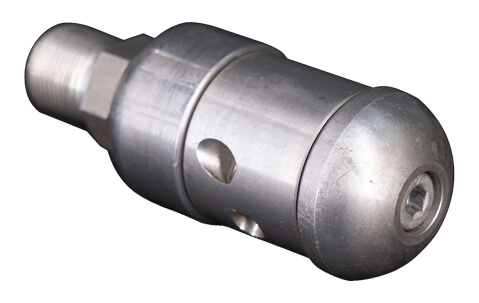

- Optional rotary nozzles, flexible guns and various spare accessories
Technical Parameters
| 1500bar 85LPM Diesel Water Jet Cleaning Machine | |||
| Pressure | 1500 bar | Water flow | 85 LPM |
| Engine drive | Diesel | Diesel engine power | 264 kw |
| Pump speed | 366 rpm | Pump stroke | 120 mm |
| Plunger diameter | 24 mm | Gear ratio | 4.04i |
| Dimension | 4200*2300*2500 mm | ||
| 1500bar 85LPM Standard Accessories | |||

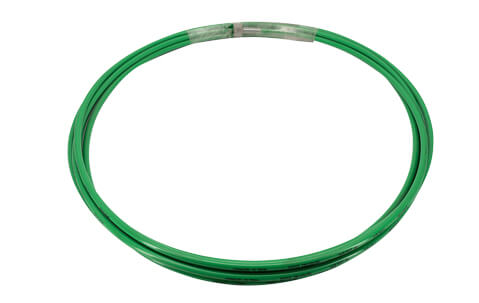

| High pressure hose | 50 m | Foot control valve | 1 pc |

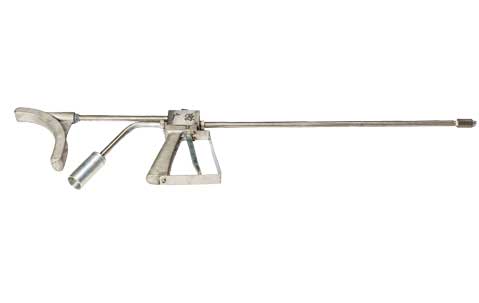

| Flexible gun | 1 pc | Flexible gun nozzle | 4 pcs |
| Steel gun | 1 pc | Steel gun nozzle | 4 pcs |
| High pressure gun | 1 pc | High pressure nozzle | 4 pcs |
| Protective raincoat | 1 pc | Spare parts | 1 set |
Application Scope
This 1500 bar water jet cleaning machine is suitable for high-pressure water jet cleaning, metal cutting, ship hull cleaning, paint stripping and rust removal. This industrial hydro blaster handles industrial pipeline cleaning, heat exchanger, condenser, boiler pipe descaling, tank and reaction kettle cleaning for pharmaceutical, food processing, steel, power, chemical and sugar industries.
Product Model List (Optional Variants)
| Model | Pressure | Flow Rate | Drive |
| GYB-5 80/1000 | 1000 bar | 80 LPM | Electric / Diesel |
| GYB-5 50/1200 | 1200 bar | 50 LPM | Electric / Diesel |
| GYB-5 70/1200 | 1200 bar | 70 LPM | Electric / Diesel |
| GYB-5 50/1500 | 1500 bar | 50 LPM | Electric / Diesel |
| GYB-5 85/1500 | 1500 bar | 85 LPM | Electric / Diesel |
| GYB-5 11/1500 | 1500 bar | 110 LPM | Electric / Diesel |
Note: Electric version supports 380V 50Hz / 440V 60Hz / 415V 50Hz customized; Diesel engine can choose Huadong, Weichai, Cummins brand.
Service & Support
We offer customizable configurations for this cleaning system, including power supply adjustment, water tank capacity upgrades, multiple rotary nozzle options and supporting filter systems. Get in touch with our engineering team for a tailored cleaning solution based on your vessel dimensions and residue characteristics.
FAQ
Q1: Are you a manufacturer?
A1: Yes, Zhengzhou Guangyuan Cleaning Equipment Co., Ltd is a professional manufacturer of industrial high pressure water jet cleaning machines and hydro blasters.
Q2: What is your delivery time for this diesel hydro blaster?
A2: 7–15 working days for large 500–1500bar high pressure cleaning machines.
Q3: What ports can we ship from?
A3: Qingdao, Shanghai, Ningbo, Tianjin, Guangzhou, select the most convenient port for you.
Q4: Can you support third-party inspection?
A4: Yes, we support buyer-appointed third-party inspection before shipment. We also provide self-inspection photos and videos.
