Product Overview
- Our 1500Bar hydro jetting machine is a multifunctional water blasting cleaning equipment integrated with German KAMAT pump technology. Specially designed for road marking removal, airport runway maintenance and various industrial cleaning scenarios, this water jet remover thoroughly eliminates road paint lines, reflective films, glue residues, oil stains, rust and scale without damaging the original pavement and equipment surface.
- Different from traditional manual, chemical and mechanical cleaning methods, our hydro jetting solution features zero pavement damage, dust-free operation, no chemical pollution and high efficiency. It has become the officially preferred road marking removal technology for road administration and airport engineering projects worldwide.
Parameters
| Main Machine | |
| Model | GYB-5 85/1500 |
| Rate Pressure | 1500 bar / 22200 psi |
| Water flow | 85 L/min |
| Plungerdiameter | 26 mm |
| Inpurt speed | 1480 rpm |
| Pump speed | 366 rpm |
| Plunger stroke | 120 mm |
| Diesel engine drive | 225kw, 6-cylinder |

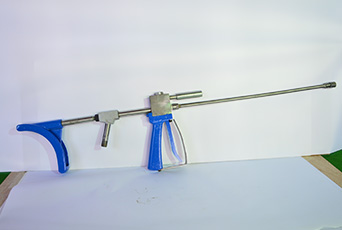

| Accessories | |

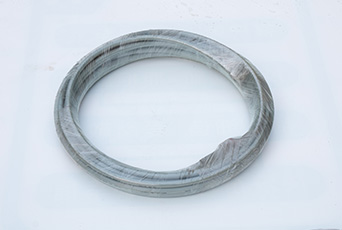

| High pressure hose | 30 meters |
| Spare filter bag | 1 set |

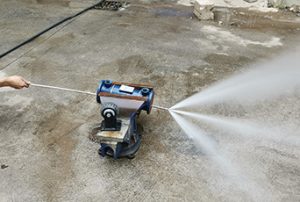

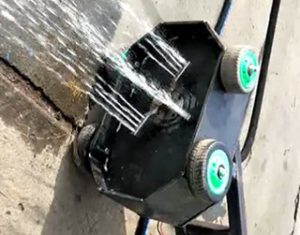

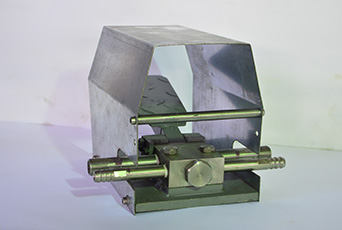

| Trolley rotating nozzle | 1 set |
| Explosive film | 2 pcs |
| Toolbox | 1 set |
| O-ring | 20 pcs |
Working Principle

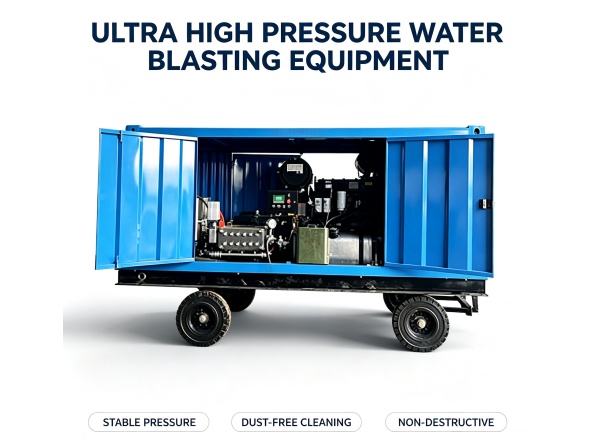

The ultra-high pressure water jetting machine adopts pure physical water pressure cleaning technology. Equipped with a high-performance core pump, it continuously generates stable 1500Bar ultra-high pressure water flow, which is transmitted to the hand-push cleaning host through a high-pressure wear-resistant hose.

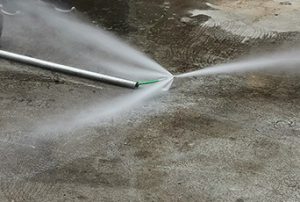

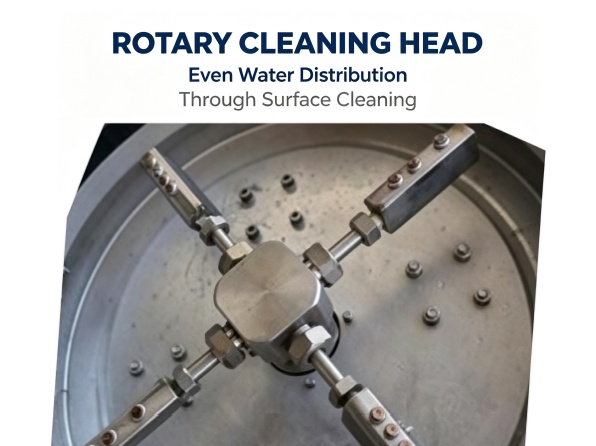

The high-speed rotating water jet impacts and shears the surface of road markings, glue residues, dirt and scale, destroying the structural adhesion of the attachments. The hand-push mobile design enables flexible operation. The flushed pavement and equipment surface remain intact and smooth, realizing efficient, thorough and nondestructive cleaning and removal.
Core Product Advantages
- German Imported Core Technology

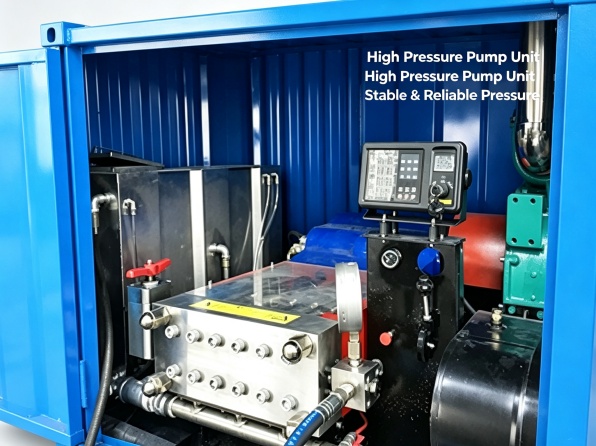

- Adopts professional German KAMAT pump technology, with stable and reliable working pressure, stepless adjustable pressure, no pressure fluctuation during long-term operation, ensuring consistent cleaning effect.
- Multi-layer Filtration & Durability
- Equipped with dual water inlet filtration systems, which can effectively filter tiny impurities and particles in the water source, protect the core pump body from abrasion, and greatly extend the service life of the equipment.
- Full Safety Protection System
- Built-in high-pressure alarm, high-temperature water alarm, overload protection, overpressure protection, low liquid level protection, water inlet pressure protection and motor phase loss protection. All-round safety monitoring avoids equipment failure and safety accidents.
- Energy-saving & High Efficiency
- Optimized power structure design, low energy consumption and high cleaning efficiency. It completes marking removal and industrial cleaning faster than traditional abrasive cleaning methods, saving labor and time costs.
- Zero Damage & Eco-friendly
- Pure physical water cleaning, no chemical additives, no environmental pollution, no dust emission. It will not damage asphalt, cement pavement and equipment base surface, reducing later road maintenance costs.
Wide Application Fields

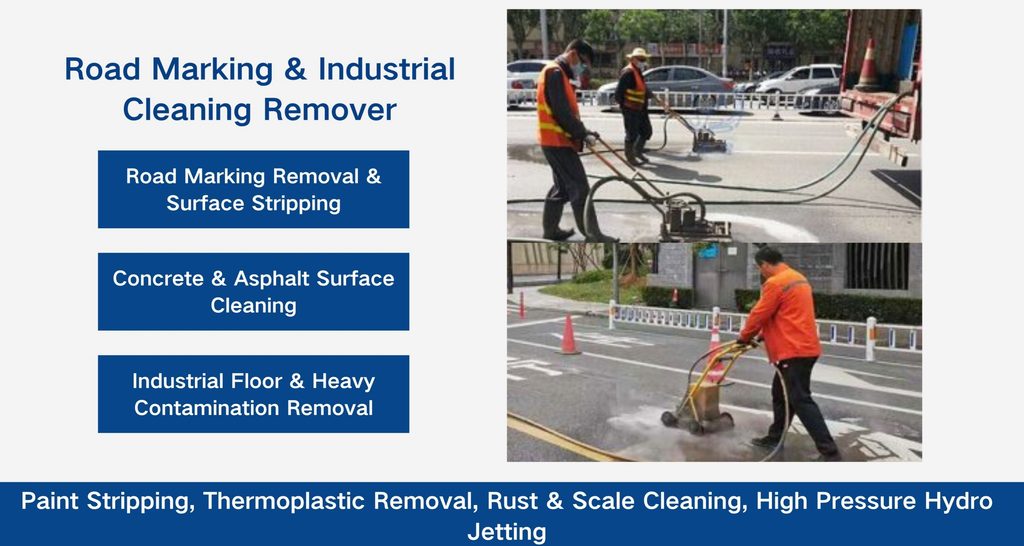

Road & Airport Engineering
- Removal of white, yellow, red and other colored road traffic markings
- Cleaning of road surface reflective film and residual glue
- Airport runway oil stain, glue residue and tire mark removal
- Pavement dirt cleaning and surface renovation
Industrial Factory Cleaning
- Metallurgy & Cement Plant: Pipeline fouling removal, equipment surface grease cleaning, heat exchanger tube descaling, warehouse and tank dirt cleaning
- Chemical & Power Plant: Reactor tank, filter screen, boiler and pipeline deep cleaning
- Food Processing Plant: Mixing tank residual dirt, grease and fouling removal, evaporator and boiler cleaning
- Machinery Manufacturing Plant: Equipment oxide skin, rust and pipeline dirt cleaning
Construction & Shipyard Industry
- Construction engineering: Mixing drum, cement, tar and adhesive residue cleaning, engineering vehicle cleaning
- Shipyard: Hull rust removal, old paint removal, surface dirt cleaning, sea creature residue removal at the bottom of the ship
Call To Action
Looking for efficient, non-destructive and eco-friendly road marking removal and industrial cleaning equipment? Our 1500Bar Hydro Jetting Machine is your ideal choice. Contact us/contact-us/ now for customized solutions, factory direct prices and technical support!
