Product Overview

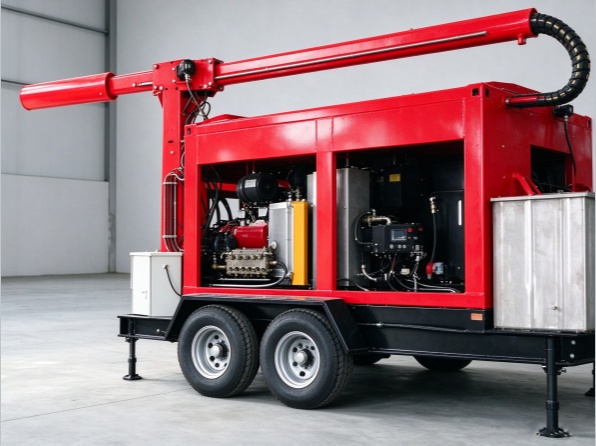

Our 85Lpm 1400Bar Tank Vessel Cleaning System is a professional high pressure water jet hydro blaster cleaner specially built for automated concrete mixer cleaning. Equipped with patented rotating nozzle assembly, it creates 3D high-pressure spray jets to thoroughly access every corner inside concrete mixers and strip hardened, stubborn concrete deposits efficiently.
This hydro blasting system cuts cleaning time down to roughly 10 minutes or less. Replace slow, risky manual washing with one-button automatic cleaning, helping concrete plants unlock higher productivity while lowering water use and labor cost.
Product Specifications
| Main technical parameters | |||
| Water flow | 85 L/Min | Pressure | 1400 bar |
| Engine drive | Diesel engine | Diesel engine power | 264kw |
| Pump speed | 366 rpm | Pump stroke | 120 mm |
| Plunger diameter | 26 mm | Gear ratio | 4.04 i |
| Dimension | 4200*2000*2200 mm, 4100 kg | ||
| 1400bar 85LPM Truck mixer drum cleaning system configuration | |||
| High pressure hose * 50m | High pressure nozzle * 4pcs | ||
| Spare parts for pump * 1set | Water filter bag * 4pcs | ||
Product Performance
- Shorten cleaning cycle to extend available production time
- Reduce water consumption vs traditional manual mixer cleaning
- Cut manual labor input significantly
- Safer automated mixer cleaning operation
- Optimize on-site working environment to improve staff satisfaction
- Support effective preventative maintenance by keeping mixers clean
- Prolong service life of mixing tools and liners
Key Benefits
Application Field
Concrete mixer cleaning is a tough, dirty routine task for batching plants. Our automated concrete mixer cleaning system makes this work faster, safer and more economical.
Powered by patented rotating nozzle technology, the unit generates high-pressure 3D spray jet geometry to cover all internal surfaces of mixers and blast away stubborn concrete build-ups.
Compared with manual cleaning, the system consumes far less water and completes full cleaning within 10 minutes.
Simply press a button to start automatic cleaning. Gain faster mixer cleanout, reduce labor workload, protect workers and maximize your plant’s production uptime.
