Overview

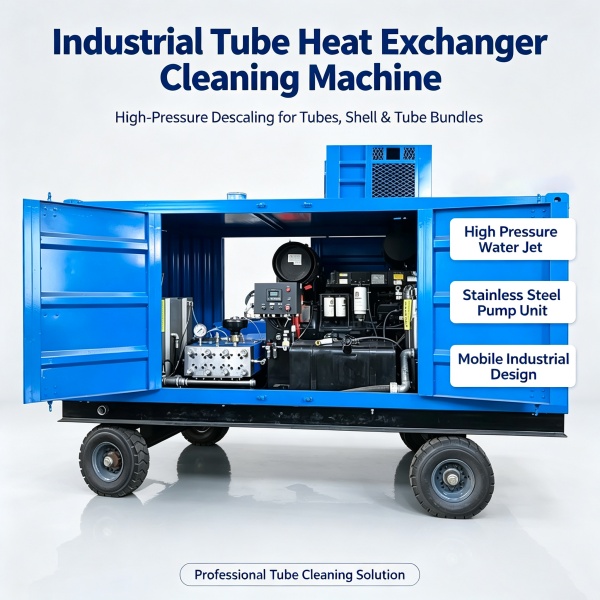

- Our 1500bar high pressure water jetting machine delivers powerful impact and jet force by combining 1500bar ultra-high pressure and 50Lpm large flow rate. It efficiently removes stubborn contaminants including heavy oil, rust, scale, concrete residue and thick aged dirt layers.
- This state-of-the-art hydro jetting solution handles the toughest industrial cleaning tasks. Rated at 1500 bar (22000psi), the equipment balances exceptional power and precision across a wide range of hydro jetting applications.
- As a globally recognized, economical and eco-friendly cleaning system, it uses high-pressure water column as the main cleaning medium. Unlike chemical cleaning, it leaves no harmful residue and causes no damage to the base material of your equipment.
Parameters
| Model | GYB-5 50/1500 |
| Pump Speed | 366 rpm |
| High pressure pump | Triple plunger pump |
| Pump head material: Stainelss steel | |
| Plunger material: stainless steel | |
| Pump speed:366 rpm | |
| Plunger stock:120 mm | |
| Rate Pressure | 1500 bar / 22000 psi |
| Waterflow | 50 L/min |
| Plunger dia. | 22 mm |
| Electric motor drive | 160 kw, 3Phase, 380v/50Hz or 440v/60Hz |
| Diesel engine drive | 225 kw, 6-cylinder |
- The hydro jetting machine relies on a power unit to drive a high-pressure plunger pump and generate high-speed pressurized water. When the impact force of high-pressure water exceeds the adhesive force between dirt and the object surface, the contaminants will be peeled off and washed away completely.
- For most dirt, only high-pressure water is sufficient. For extreme heavy oil stains, a small amount of detergent can be added. The foam generated by strong water pressure can take away general fouling effectively.

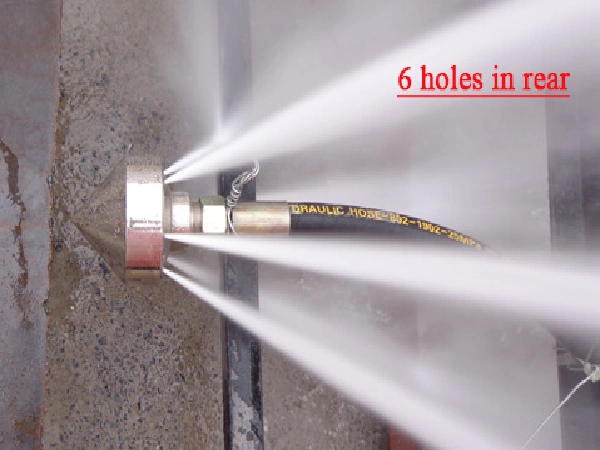

- Optional 3D cleaning head is available for internal pipe, sewer and hard-to-reach areas. Operators can access hidden spots to clean both internal and external surfaces thoroughly.
Core Advantages & Performance
- Super Powerful Cleaning Capacity
- Equipped with a 1500Bar (22000PSI) ultra-high pressure system and 50Lpm large flow output, the water impact force far exceeds the adhesion of dirt to equipment surfaces. It easily removes all kinds of stubborn contaminants, including thick oil stains, heavy rust, hard scale, concrete residues, and aged dirt layers. It can quickly clean long-term uncleaned industrial equipment surface dirt, marine biological attachments, and ship hull rust.
- Full-Coverage Pipeline Cleaning
- Effectively cleans the inner wall of various industrial pipelines, thoroughly stripping dirt, rust, scale, and sundries. It solves common problems such as pipeline blockage and metal corrosion, greatly improving pipeline fluid transportation efficiency and operational safety.
- Wide Pressure Adaptability
- The equipment supports adjustable working pressure ranging from 300Bar to 3000Bar, covering light to heavy industrial cleaning scenarios to meet diverse operational requirements.
- Precision 3D Cleaning Technology
- Matched with a professional 3D cleaning head, it realizes all-round dead-angle-free cleaning for pipeline interiors, sewers, and narrow hidden areas that are hard to reach by manual cleaning.
- Eco-Friendly & Cost-Effective
- Adopts pure water cleaning mode. Only a small amount of detergent is needed for extreme heavy oil stains. The high-pressure water foam generated by equipment operation is sufficient to take away daily dirt, zero chemical residue, low energy consumption, and greatly reduces industrial cleaning costs.
Versatile Applications
This industrial high-pressure water jetting equipment is widely applicable to petrochemical, marine, construction, food processing, metallurgy, machinery manufacturing and other industries, covering all-round industrial cleaning and testing scenarios:
- Industrial Pipeline & Container Cleaning
Cleaning for heat exchanger tubes, condenser tubes, industrial conveying pipelines, oil pipelines, natural gas pipelines, water supply and drainage pipelines, reaction tanks, storage tanks, evaporators, boilers, and filter screens; remove internal scale, sludge, rust and residual dirt to prevent pipeline blockage and equipment failure. - Ship & Marine Industry
Ship hull deep derusting, old protective coating removal, ship surface renovation, underwater marine organism attachment cleaning, zebra crossing and road marking removal for ship decks, meeting all ship maintenance and cleaning standards. - Construction & Cement Industry
Concrete residue cleaning, mixing drum and mixing tank dirt removal, tar and adhesive cleaning, cement pipeline fouling removal, engineering vehicle and truck high-pressure cleaning. - Food & Chemical Processing Industry
Food factory mixing tank cleaning, equipment surface grease and residual fouling removal, boiler and evaporator internal dirt cleaning; chemical industry pipeline and tank derusting and descaling, safe and pollution-free, in line with food-grade and chemical industrial cleaning requirements. - Metallurgy & Machinery Manufacturing
Metallurgical plant heat exchanger and feeding tank cleaning, workshop floor and equipment dirt removal, oxide skin and rust removal for mechanical equipment, pipeline and container renovation cleaning. - Industrial Pressure Testing & Water Injection
Support pipeline pressure test, valve and hose hydraulic pressure test, industrial hydrostatic pressure test, and professional water injection operations for industrial equipment.
