Description
- Our plate heat exchanger cleaning system delivers 240 bar high-pressure water jet cleaning for plate heat exchangers. It removes scale, sludge and biofilms from plate surfaces. Moreover, it restores heat transfer efficiency for food processing, chemical and pharmaceutical plants.
- Prolonged operation leads to limescale, oil dirt and sediment buildup, clogging heat exchange channels, lowering thermal performance, increasing system pressure and accelerating equipment deterioration.
- Compared with inefficient, corrosive chemical cleaning and manual scrubbing, our unit combines 240bar stable high pressure and 170Lpm large water flow to strip hard scale and flush residual dirt completely without dead corners.
- Providing chemical-free, non-damaging physical cleaning, it is ideal for stainless steel and titanium alloy plate heat exchangers in chemical, HVAC, food processing and industrial cooling systems, restoring full heat exchange performance and extending equipment service life.

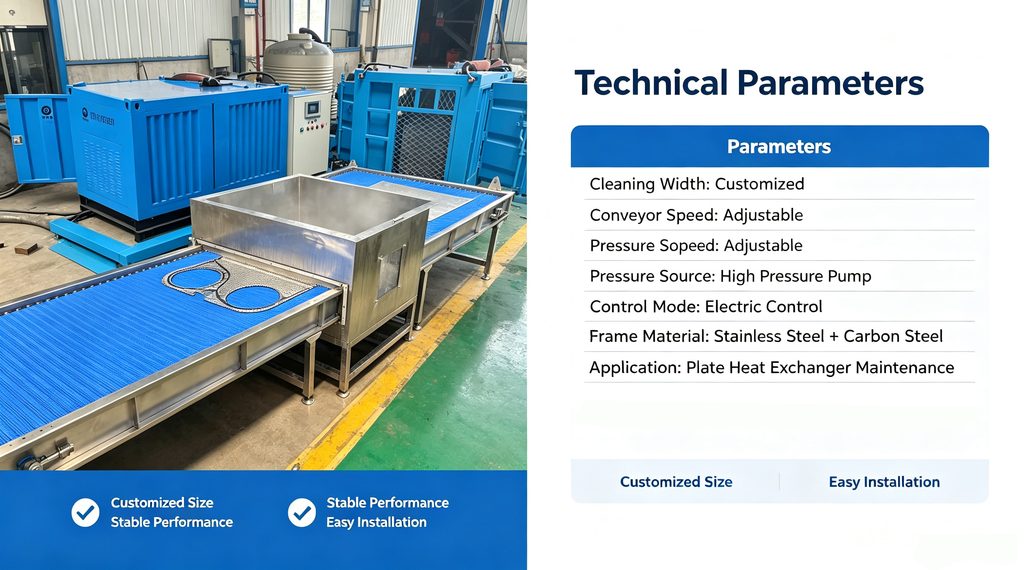

Parameters
| Specification of 240 bar 170Lpm plate heat exchanger cleaning system | |||
| Model | GYB-2 170/240 | ||
| High pressure pump | Pressure | 24 Mpa / 240 bar / 3600 Psi | |
| Water flow | 170 L/min | ||
| Input speed | 1480 r/min | ||
| Plunger diameter | 45 mm | ||
| Plunger stock | 95 mm | ||
| Pump speed | 405 r/min | ||
| Electric motor | Power | 75 kw; 3 phase | |
| Voltage | Can be customized | ||
| Filtration system | First stage 80 mesh; second stage 300 mesh | ||
| Cleaning line | Dimension | 1000*120*90 mm | |
| Power | 600w | ||
| Cleaning Width | 200 ~ 1000 mm | ||
| Cleaning Type | Direct-spray flat fan nozzle singlesided cleaning | ||
| Dimension | 2200*1650*1600 mm; 1000*1200*900 mm | ||
| Weight | 3000 kg | ||
- 240 Bar High-Pressure Pump System
The supporting high-pressure pump group delivers a working pressure up to 240 bar. It generates strong water jet impact force to break down and strip hard scale, oil sludge, mineral deposits, and other stubborn attachments on heat exchanger plates, realizing deep physical descaling. - 170 L/min Large Flow Design
Rated flow reaches 170Lpm. The ultra-large water volume ensures continuous and powerful water circulation in narrow plate gaps. While removing dirt, it quickly flushes all stripped residues out of the heat exchanger, avoiding secondary adhesion and greatly improving overall cleaning efficiency. - Stable 75kW Power Drive
Equipped with a 75kW electric motor, the unit provides sufficient and stable power output for the high-pressure pump group. It supports long-term full-load pressure operation, ensuring stable and consistent cleaning performance for industrial continuous cleaning tasks.
Principle & Advantages
- This industrial-grade high-pressure water cleaning unit is professionally designed for plate heat exchanger maintenance. It utilizes high-energy and high-flow water streams to penetrate narrow plate gaps, thoroughly strip stubborn deposits, and achieve thorough overall cleaning without damaging the heat exchanger plates.
Application
- Chemical industrial heat exchange systems
- HVAC central air conditioning heat exchanger units
- Food and beverage processing production lines
- Industrial cooling circulation systems
- Stainless steel & titanium alloy plate heat exchanger maintenance
