Parameters
- High-pressure cleaner for aluminum formwork is an efficient, eco-friendly industrial cleaning solution. It removes concrete residue, mortar stains and release agent buildup from aluminum formwork surfaces. This cleaning method uses pure water jets without chemicals. It helps contractors clean formwork quickly and extend its service life.
| Specification of 1400 bar 40Lpm plate heat exchanger cleaning system | |||
| Model | GYB-5 40/1400 | ||
| High pressure pump | Pressure | 14 Mpa / 1400 bar / 20300 Psi | |
| Water flow | 40 L/min | ||
| Input speed | 1480 r/min | ||
| Plunger diameter | 20 mm | ||
| Plunger stock | 120 mm | ||
| Pump speed | 366 r/min | ||
| VFD Electric motor | Power | 110 kw; 3 phase(Voltage can be customized) | |
| Speed | 1500 r/min | ||
| Cable | 70mm²*3+1(Prepared by the client) | ||
| VFD Electric control cabinet | Control the start/stop | ||
| Display voltage/current | |||
| Water tank | 300L; 304 Stainless steel material | ||
| Filtration system | First stage 80 mesh; second stage 300 mesh | ||
| Dimension | 3200*1700*1900 mm | ||
| Weight | 3200 kg | ||
Standard Operation Workflow
- 1. Stable Ultra-high Pressure & Constant Flow for Thorough Cleaning
Equipped with stable 1400bar ultra-high pressure and a steady 40Lpm flow rate, the machine delivers powerful impact force. It completely removes thick concrete layers, cement residues, mortar deposits and release agents from aluminum formwork surfaces, leaving no dirt residues on ribs, corners and groove dead corners for full-scale thorough cleaning.
- 2. Zero Damage to Aluminum Alloy Substrate, Extended Template Service Life
Adopts pure physical water jet cleaning technology without sand blasting or chemical detergents. It causes zero damage to the aluminum alloy substrate, effectively avoiding formwork deformation, scratches and corrosion, and significantly prolongs the service life and turnover cycle of aluminum templates.
- 3. High Cleaning Efficiency & Significant Labor Cost Reduction
Features outstanding cleaning efficiency. A single operator can complete cleaning of 300–700 square meters of aluminum formwork within 8 working hours. It replaces traditional manual shoveling and low-pressure water washing methods, cuts labor costs by 60% and greatly accelerates on-site formwork recycling progress.
- 4. Flexible Configuration & Stable Continuous Operation
Supports optional single-gun and double-gun working modes and enables long-term stable continuous operation. It perfectly meets the large-batch aluminum formwork cleaning demands of prefabrication factories and construction contractors.
- 5. Durable Core Structure & Low Failure Rate

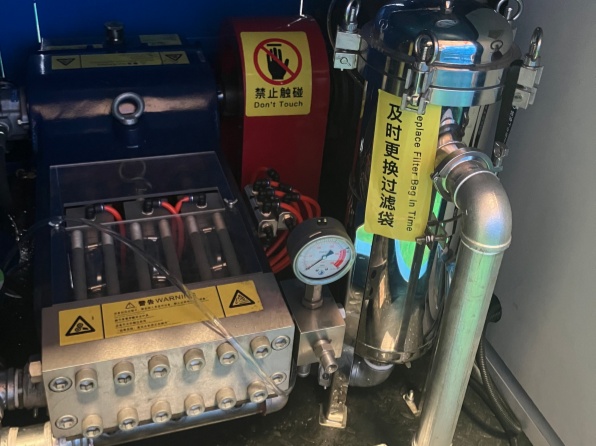

Fitted with a heavy-duty triplex plunger pump, solid ceramic plungers and wear-resistant high-pressure seal components. Equipped with a forced crankcase lubrication and cooling system, it effectively reduces equipment failure rate and extends the overall service life of the machine.
