Description

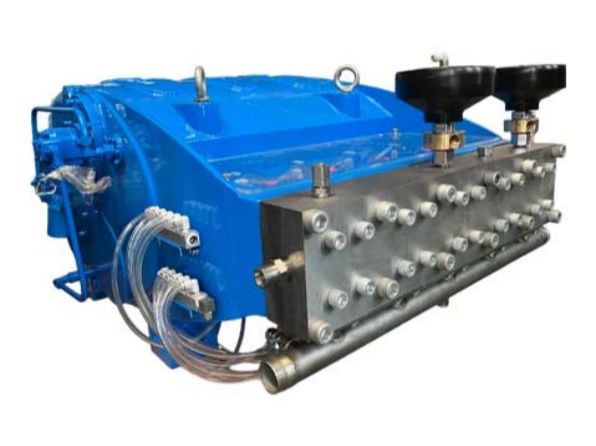

- Our heat exchanger cleaning machine uses high-pressure water jets to clean heat exchanger tubes and condenser tubes. It effectively removes scale, fouling and rust from pipelines, tanks and boilers. Besides, this machine also supports hydrostatic pressure testing for shipyard, metallurgy and cement plant projects.
Parameters
| Main Technical Parameters | |
| Model | GYB-5 200/1400 |
| Rate Pressure | 1400 bar / 20300 psi |
| Water flow | 200 L/min |

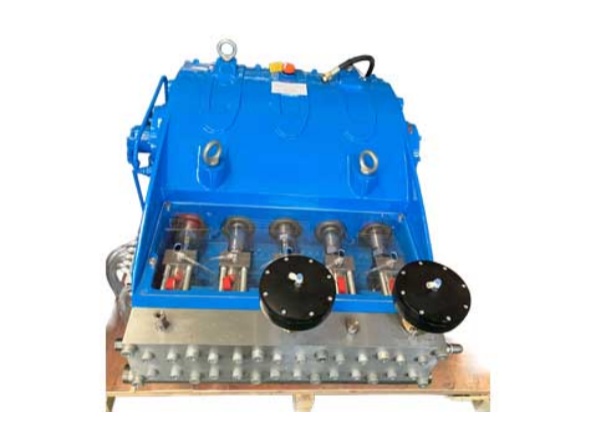

| Plunger diameter | 32 mm |
| Inpurt speed | 1480 rpm |
| Pump speed | 366 rpm |
| Plunger stroke | 120 mm |

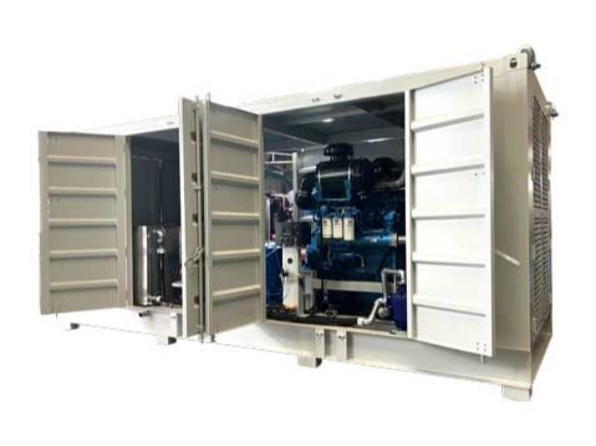

| Diesel engine power | 730 kw |
| Accessories | |

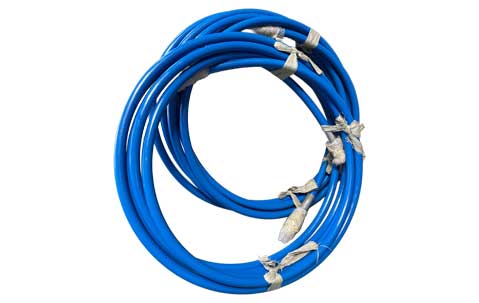

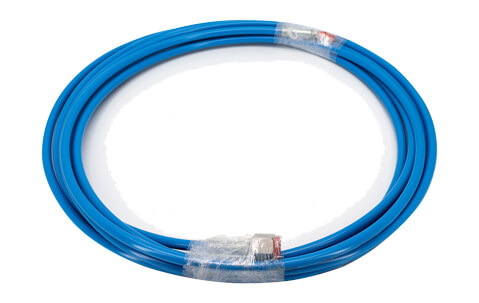

| High pressure hose | 50 meters |
| High pressure gun | 1 set |
| Fan-shaped nozzle | 2 pcs |
| Cylinder-shaped nozzle | 2 pcs |
| Flexible gun | 10M |

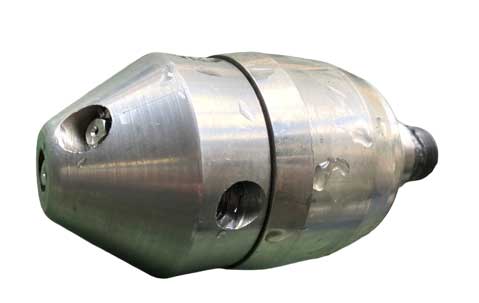

| Flexible Gun Nozzle | 4pcs |
| Steel Gun | 1.5M |

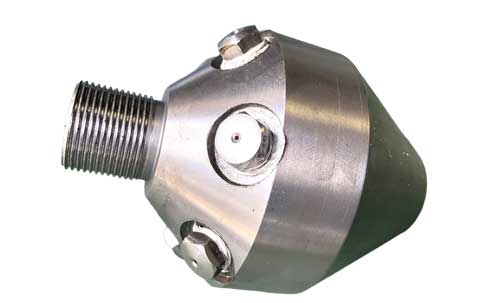

| Steel Gun Nozzle | 4pcs |
| Foot control Valve | 1pc |
| Spare Parts | 1 set |

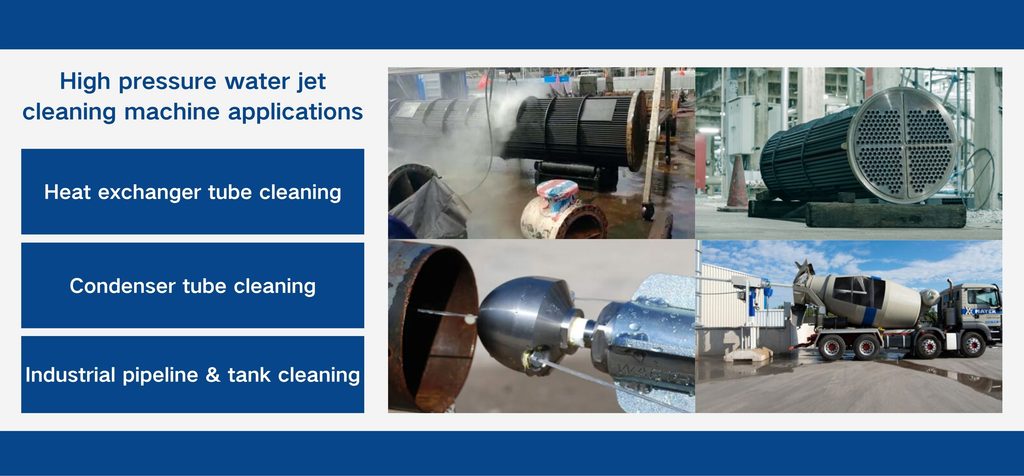

Applications
- Industrial cleaning: heat exchanger tube, condenser tube, pipeline, reactor tank, filter screen, boiler and tank cleaning
- Pressure testing: pipeline, valve, hose and hydrostatic pressure testing
- Water injection
- Cement plant: pipeline cleaning, equipment degreasing, fouling removal
- Construction: vehicle & mixer drum/tank cleaning, tar/cement/adhesive residue removal
- Food plant: mixing tank cleaning, grease/fouling/residue removal, evaporator & boiler cleaning
- Shipyard: rust removal, paint stripping, hull cleaning, sediment & marine organism removal
- Metallurgical plant: heat exchanger tube & boiler cleaning, feed/storage tank cleaning, descaling
- Machinery factory: vessel, pipeline, tank cleaning, rust & oxide skin removal
