Description

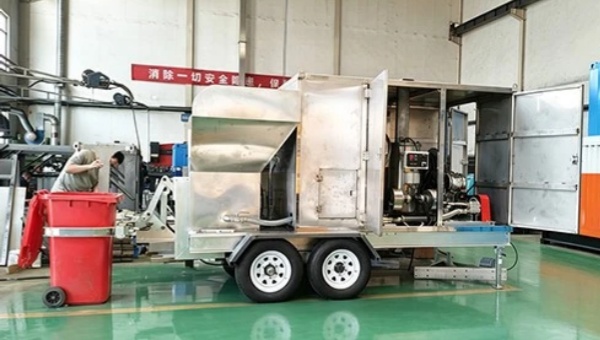

Our automatic wheelie bin cleaning machine is built as a self-contained mobile bin washer for fast, hygienic wheelie bin washing. It accepts wheeled waste bins of various sizes with a height-adjustable, switch-controlled hydraulic lift for hands-free bin loading.
Once started, the wheelie bin is lifted into the fully enclosed cleaning chamber. High-power bidirectional rotary cleaning heads spin along dual 360° axes, blasting high-pressure water to thoroughly sanitise the bin walls and base of the wheelie bin. After washing, wastewater drains into the sealed sump for water recycling, then the clean bin lowers back to ground level for easy unloading.
Parameters
| Main Technical Parameters | |
| Model | GYB-1 80/150 |
| Rate Pressure | 150 bar / 2175 psi |
| Water flow | 80 L/min |
| Plunger diameter | 18 mm |
| Inpurt speed | 1480 rpm |
| Pump speed | 1480 rpm |
| Plunger stroke | 28 mm |
| Diesel engine power | 30 HP |
| Accessories | |
| High pressure hose | 50 meters |
| 360 rotating nozzle | 2 sets |
| Spare Parts | 1 set |
The GYB-1 Bin Wash LITE is an automated twin-lift bin washer. It cleans single wheelie bins holding up to 230 litres. A diesel engine drives this unit, and its high-performance rotary cleaning heads quickly and efficiently wash the inside of domestic wheelie bins.
Moreover, it comes standard with a 20 Lpm pump and safety unloader. You may also add an optional hand lance. This LITE model supports water recycling, and it includes water fresher dosing by default. In addition, users control the lift system with simple, easy-to-use switches. Its lifting arm has a lockable securing mechanism, so it firmly holds irregular-shaped bins widely seen in supermarkets, leisure centres and shopping malls.
Advantages
- Powerful Hot Water High-Pressure Cleaning System for Wheelie Bins
- Delivers 180 bar high pressure and 50 L/min large-flow water output. Integrated hot water cleaning function quickly dissolves grease, food residues and stubborn contaminants on wheelie bins.
- Dual Independent Cleaning Stations for Wheelie Bin Washing
- Dual-workstation design enables simultaneous cleaning of two wheelie bins to boost daily throughput. Each station features independent controls for separate start and stop operations.

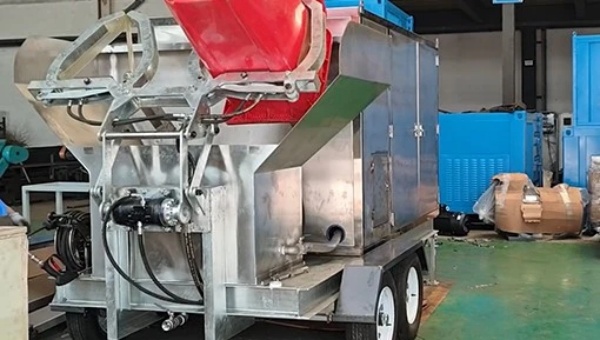

- Automatic Hydraulic Lifting Arm — Labour-Saving Wheelie Bin Washer
- Fitted with a hydraulic lifting mechanism to automatically lift and invert bins. No manual handling or bin flipping required.

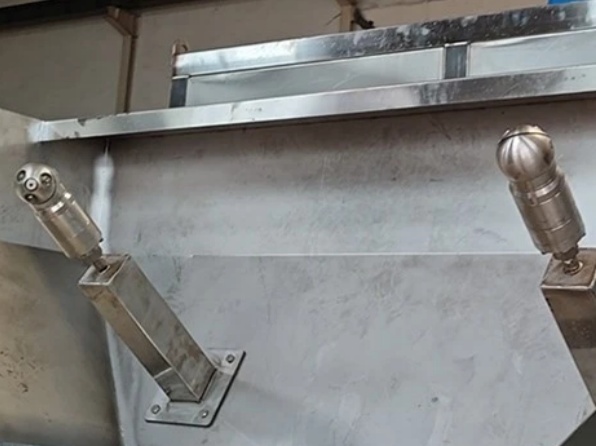

- 3D Rotating Spray Nozzles for Dead-Angle-Free Bin Sanitising
- Built-in 3D rotary high-pressure nozzles provide multi-angle automatic rotating spraying inside bins for comprehensive coverage.

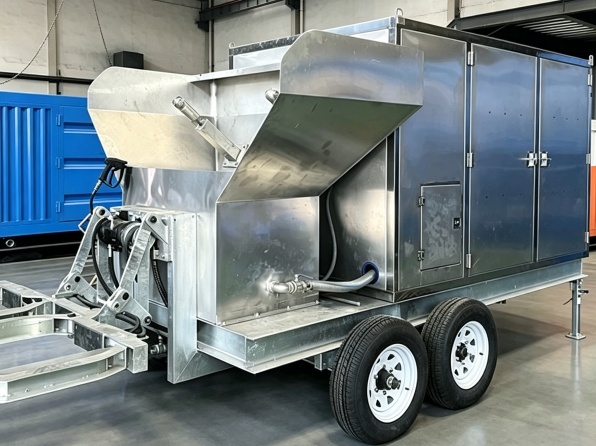

- Trailer-Mounted, Diesel-Powered Mobile Wheelie Bin Cleaning Machine
- Mobile trailer chassis with diesel engine drive, allowing flexible on-site bin cleaning anywhere.
- Multi-Size Compatibility for Standard Wheelie Bins
- Adjustable cleaning chamber and hydraulic lifting arm to accommodate standard wheelie bins of different capacities.
Application Scenarios
This mobile wheelie bin washer and automatic wheelie bin cleaning machine is widely used by municipal waste departments, waste management contractors, commercial cleaning firms, supermarkets and shopping centres. It removes organic waste, grease, grime and bad odours from domestic and commercial wheelie bins to meet sanitation and environmental requirements.
You can also check our IBC tank cleaning machine for other heavy-duty cleaning jobs. This wheelie bin washer uses proven high-pressure plunger pump technology for reliable continuous operation.
