Product Overview
- Our fuel tank hydro jet cleaner is a professional automated cleaning solution tailor-made for gas station underground oil storage tanks and road fuel tanker trucks. With a maximum flow of 170LPM and optional 30bar/50bar working pressure, this industrial-grade hydro jet cleaning equipment delivers high-volume, high-impact water flushing to thoroughly eliminate tank internal contaminants. Featuring a 3D rotary cleaning nozzle and fully enclosed automatic operation, it realizes zero-man-entry tank cleaning, completely solving the safety risks, low efficiency and incomplete cleaning pain points of traditional manual tank washing.
- Dual Pressure Customization: Supports 30bar conventional working pressure and 50bar high-pressure upgrade version. The high-pressure water jet boasts strong impact force, which can quickly remove stubborn aged oil dirt and hardened deposits, ensuring thorough tank wall cleaning.
- Dramatic Efficiency Upgrade: Traditional manual cleaning of a 50m³ oil tank requires 2-3 working days with incomplete cleaning results. Our automatic hydro jet cleaning system only takes 30 minutes to finish full-scale tank cleaning, greatly shortening gas station and tanker downtime and improving operational turnover efficiency.
Parameters
| Main Machine | |
| Explosion-proof motor | 20 kw Huaxin explosion-proof motor |

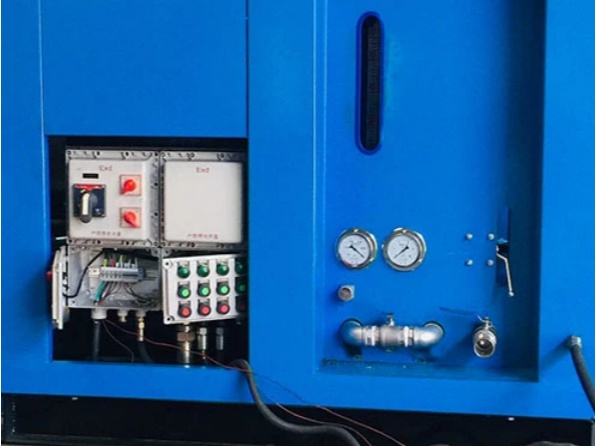

| Explosion-proof electric control | 22 KW can control cleaning, sewage extraction and separator at the same time |
| High pressure pump | 170 L/min |
| Filters | 80 mesh |
| Pressure regulating valve | Italian PA pressure adjustable 0-50bar |
| Pressure gauge | Shockproof Silicone oil filled |
| Water tank | 400 L |

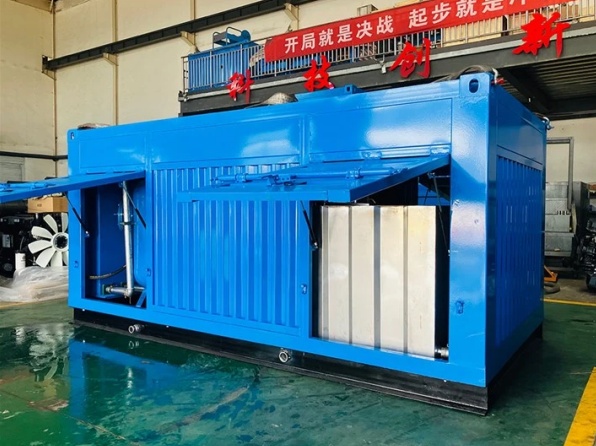

| Protection cover | The whole machine frame is made of 6.7mm heavy-dutychannel steel, with a blue container protective cover toprevent rain anddust. There is a lifting hole on the top, with a maximum load-bearing capacity of 5 tons |
| Fixed chassic | |
| Accessories | |
| High pressure hose | Anti-static rubber steel wire high pressure hose 100BAR |

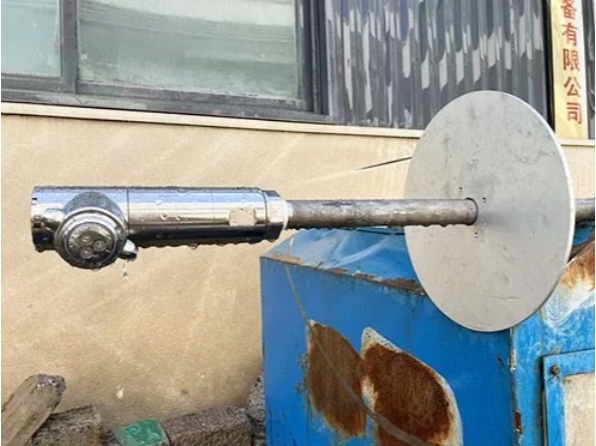

| 3D rotating nozzle | Stainless steel |
| Flange | 900 mm with handle |
| Sewage suction | |
| Sewage suction pipe | Φ 40mm 10m |
| Sewage suction pump | Lihao vacuum pump |
| Explosion-proof motor | 3 KW Huaxin explosion-proof motor |
| Vacuum tank | Diameter 1 m, height 1.2 m |
| Sewage storage tank | 1 cubic meter |
| Oil-water separation | |
| Oil pump | Flow rate 29 m³/h , Pressure 0.36 Mpa , Power 7.5 kw Equipped with 3m aluminum alloy hard pipe, 10m/root*2 anti-staticsteel wire pipe |
| Oil pumping aluminum pipe | Anti-static |
| Oil-water separator | |
| Wastewater Filtration | |
| Explosion-proof motor | 5.5 KW Huaxin explosion-proof |
| pipeline | |
Safety & Application Advantages
Oil tank interior belongs to confined space, filled with flammable, explosive and toxic harmful gases. Manual tank entry cleaning faces extreme risks of hypoxia, poisoning, explosion and fire accidents, with high labor cost and hidden safety hazards. Our automated tank cleaning equipment fundamentally reverses this situation.
- Zero Personnel Entry, Full Safety
- Fully enclosed automated operation, no need for workers to enter the tank. Optional explosion-proof configuration complies with strict petroleum industry safety standards, completely eliminating all confined space operation risks.
- Customizable Mobile Design
- Adopts movable trailer frame, supporting on-site mobile cleaning for road tankers and fixed cleaning for gas station buried tanks, flexible to adapt to various on-site operation scenarios.
- Cost & Loss Reduction
- Ultra-high cleaning efficiency minimizes equipment downtime and oil tank idle time, reducing labor costs, safety management costs and economic losses caused by long-term shutdown.
Application Fields
- Petrochemical industry

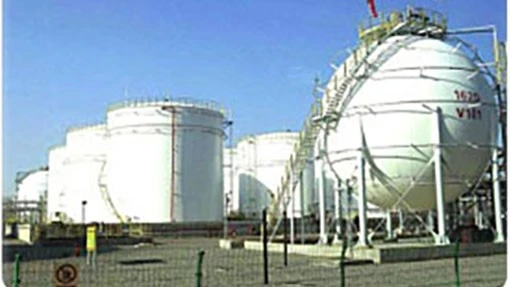

- Widely used in the cleaning of various crude oil tanks and refined oil tanks. During the oil refining process, oil tanks need to be regularly cleaned to remove oil stains, impurities, and sediments inside the tanks to ensure the quality of oil products and storage safety.
- Transportation industry

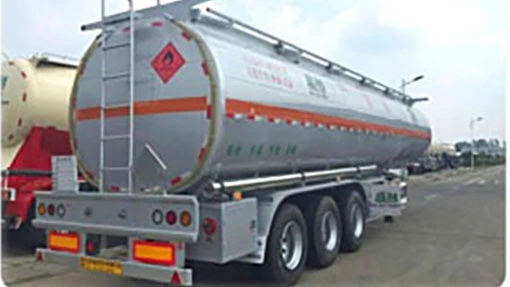

- Used to clean the oil tanks of oil tankers, tank trucks, and other transportation equipment. These oil tanks accumulate a large amount of oil stains and impurities after long – term use, affecting transportation efficiency and safety. The automatic high – pressure water oil tank cleaning system can complete the cleaning work quickly and efficiently.
- Industrial enterprises:
- The storage tanks inside some industrial enterprises also need to be cleaned regularly. For example, the storage tanks of power plants, steel mills, and other enterprises storing heavy oil, diesel, etc. will generate dirt due to long – term use. Using the automatic high – pressure water oil tank cleaning system can keep the oil tanks clean and ensure the normal supply and use of fuel.
Other Application
- Reactor Tank Cleaning Solution
- Reactor tanks are critical components in various industries, including chemical manufacturing, pharmaceuticals, petrochemicals, and food processing. As these industries grow, so does the demand for efficient and reliable cleaning solutions for reactor tanks. The market for reactor tank cleaning solutions is expanding due to the increasing need for regular maintenance, safety compliance, and operational efficiency.
