Description
- Our industrial tube bundle cleaning machine adopts advanced Germany KAMAT high-pressure pump technology for heavy-duty heat exchanger & tube bundle descaling.
- It is equipped with stainless steel pump head and nickel-plated stainless steel plunger with forced water cooling. The water seal uses US-imported ductile iron, featuring great heat dissipation, high hardness and anti-deformation performance.
- The power-end crankcase applies forced lubrication to lower operating temperature, reduce friction coefficient and enhance lubricity. This heat exchanger cleaning machine delivers smooth, reliable transmission and long service life for industrial tube cleaning jobs.
Parameters
| Main technical parameters | ||
| Model | GYB-5 50/1500 | |
| High pressure pump | Flow rate | 50 L/min |
| Pressure | 1500 bar / 22000 psi | |
| Input speed | 1480 r/min | |
| Plunger diameter | 22 mm | |
| Plunger stock | 120 mm | |
| Pump speed | 366 r/min | |
| Diesel engine | Power | 182 kw ; 3 phase |
| Voltage | Can be customized | |
| Fuel consumption | 30 L/hour | |
| Fuel tank | 180L; Aluminum alloy material | |
| Battery | 24V/48A; Self-charging, maintenance-free | |
| Water tank | 300L; 304 Stainless steel material | |
| Filtration system | First stage 80 mesh; Second stage 300 mesh | |
| Dimension | 4000*1700*2200 mm | |
| Weight | 3800 kg | |

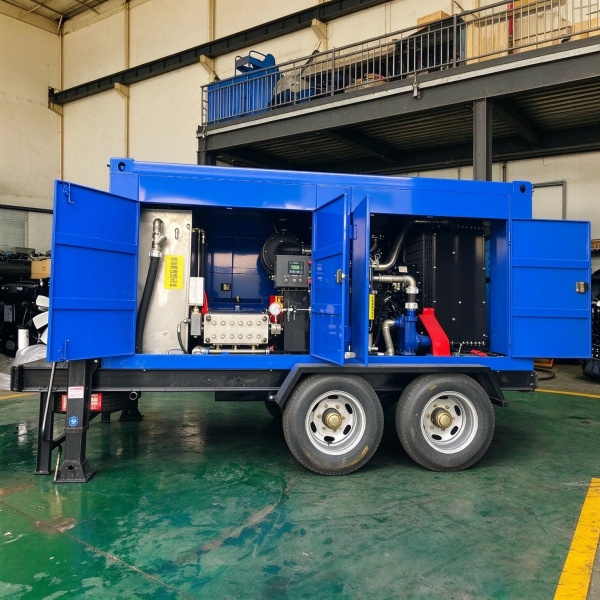

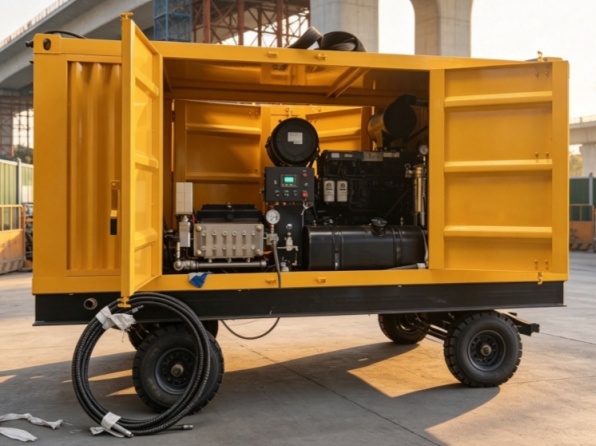

About Our UHP Water Blaster
- Guangyuan manufactures stable, professional ultra-high pressure (UHP) water jet cleaning systems, also known as hydro blasters. Moreover, these machines are safe, eco-friendly, efficient and cost-saving. We widely apply them to clean heat exchangers, pipelines, autoclaves and reaction kettles across all industries.
Why UHP Water Cleaning
- Industrial tube bundles and condenser tubes easily accumulate scale and debris. This issue causes low heat exchange efficiency, restricted flow, overheating, and even pipe rupture hazards. For this reason, regular UHP water cleaning is the safest, pollution-free and most economical method to maintain stable production.
Application Range
- Heat exchanger, condenser, pipeline, boiler and tank descaling & cleaning using UHP hydro jetting
- Hydrostatic pressure testing for pipes, valves and hoses
- Cement, construction & machinery industry dirt, grease and fouling removal
- Food factory tank, evaporator and residue cleaning
- Shipyard hull rust removal, paint stripping and marine organism cleaning
- Metallurgical equipment descaling and oxide removal
