Description

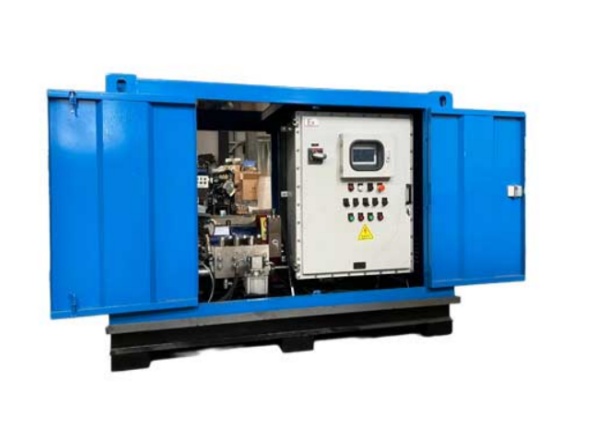

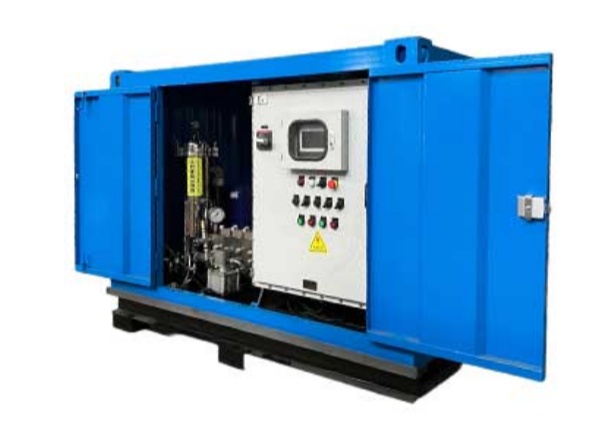

- This automated reactor cleaning machine uses high-pressure water jet technology to remove scale, fouling and residual materials inside chemical reactors, storage tanks and pressure vessels. Our reactor cleaning machine is widely used in chemical, pharmaceutical and food industries for vessel maintenance.
- Fitted with an automatic sealing cover to stop liquid splashing, the system supports closed-loop cleaning cycles. It rapidly removes multiple types of residues, including water-based, oil-based and viscous liquids. Widely used in chemical, food, coating and lubricant industries.
- Controlled by PLC, the machine seamlessly integrates with automated production lines. It greatly cuts labor intensity and eliminates safety hazards brought by manual IBC tank cleaning.
Parameters
| Main Technical Parameters | |
| Model | GYB-2 85/200 |
| Rate Pressure | 200 bar |
| Water flow | 85 L/min |
| Plunger diameter | 32 mm |
| Inpurt speed | 1480 rpm |
| Pump speed | 1480 rpm |
| Plunger stroke | 21 mm |
| electric motor power | 37 kw |
| Accessories | |
| High pressure hose | 50 meters |
| 3D rotating nozzle | 1 set |
| Spare Parts | 1 set |
Advantages
- 360° Coverage
- Patented 3D rotating nozzle with dual-axis movement (vertical/horizontal) ensures no blind spots, even for complex reactor geometries.
- High-Pressure Efficiency
- Adjustable pressure (180–350 bar) and flow rate (80–135 L/min) to remove hardened polymers, PVDF, latex, and other industrial deposits.
- Fully Automated Operation
- PLC-controlled system with pre-programmed cleaning modes for different reactor sizes and contamination levels.
- Explosion-Proof Design
- ATEX-certified options available for hazardous environments (chemical/pharmaceutical industries).
- Water & Cost Saving
- Closed-loop filtration allows water recycling, reducing consumption by up to 60% compared to manual washing.
- Versatile Compatibility
- Suitable for reactors from 5m³ to 70m³, including stainless steel, enamel-lined, and glass-lined types.
Application
- Chemical Industry : PVC, acrylic emulsion, rubber residue removal.
- Pharmaceutical : GMP-compliant reactor cleaning.
- Food Processing : Hygienic cleaning without chemical contamination.
