Product Overview

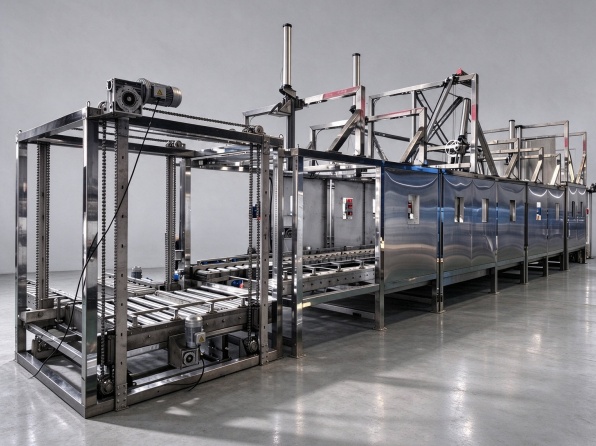

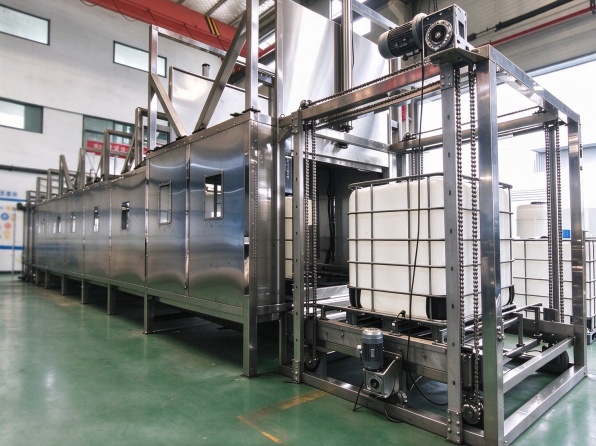

We design this automatic IBC tote washing line for deep cleaning, steam disinfection, drying and pressure-holding leak inspection of standard 1000L IBC containers.
Moreover, this IBC tote washing line runs stably with 6 continuous working stations and PLC touchscreen control. It delivers an output of 12 IBC totes per hour.
We build all wetted parts with heavy-duty 304 stainless steel. Therefore, this IBC tank cleaning system fits recycling and reconditioning work for chemical, coating, solvent, food and beverage IBC tanks.
It removes stubborn sludge, oil, paint and chemical residues efficiently. Besides, it fully meets hygiene standards and prevents cross-contamination.
6 Working Stages & Technical Workflow
120 bar / 1740 psi, 300L/min flow rate, cleans outer surface dirt and splashed chemical residue.
20 bar alkaline circulation wash to dissolve sticky organic residues.
250 bar (25MPa) high-pressure water jet deep cleaning inside the IBC tank.
30kW steam unit for sanitization, suitable for food-grade application.
3kW vacuum pump + 30kW heating system. Residual water after drying ≤200ml. Drying temperature adjustable 30–70℃.
Air pressure leak test to check IBC tote tightness, reject damaged leaking containers.
Core Features
✅ 6-in-one integrated process: wash → disinfect → dry → leak test✅ 360° rotating spray lance, no blind cleaning zone
✅ Closed-loop water circulation design, saves water & detergent
✅ Fully enclosed chamber, contains chemical fumes, eco-friendly

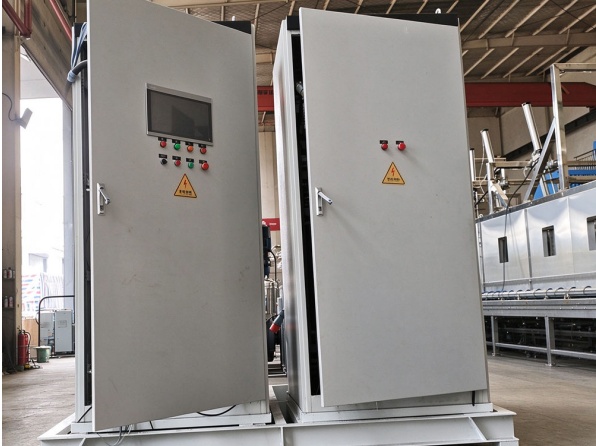

✅ PLC + local HMI touch screen, store custom cleaning recipes
✅ Roller & chain conveyor, stable continuous production
✅ Customizable layout, voltage, pressure and auxiliary modules
✅ 1-year warranty + online video technical support
This automatic IBC tote washing line is built for continuous reconditioning workshops. Its closed water circulation cuts your water and detergent cost, while fully enclosed chamber prevents harmful chemical vapor leakage, making it an eco-friendly IBC tank cleaning choice for long-term production.
Specification
| Item | Parameter |
| Model | GYB-1 L50/250 |
| Max Internal Wash Pressure | 250 bar / 25 MPa / 3625 psi |
| External Wash Pressure | 120 bar / 12 MPa /1740 psi |
| Production Capacity | 12 IBC totes / hour |
| Main Material | 304 Stainless Steel |
| Total Dimension (L×W×H) | 18000 × 4300 × 5300 mm |
| Power Supply | 380V 3-phase Electric |
| Drying Temp | 30–70℃ |
| Residual Water after Drying | ≤200 ml |
| Transmission | Roller & Chain Conveyor |
| Warranty | 1 Year |
Application Industries
Customization & After-sales
We support customized design for line layout, power configuration, extra wastewater treatment system, RFID cleaning traceability and 316SS upgrade.
Free online technical guidance, spare parts supply and remote troubleshooting. Lead time: 30 working days.
