Product Overview

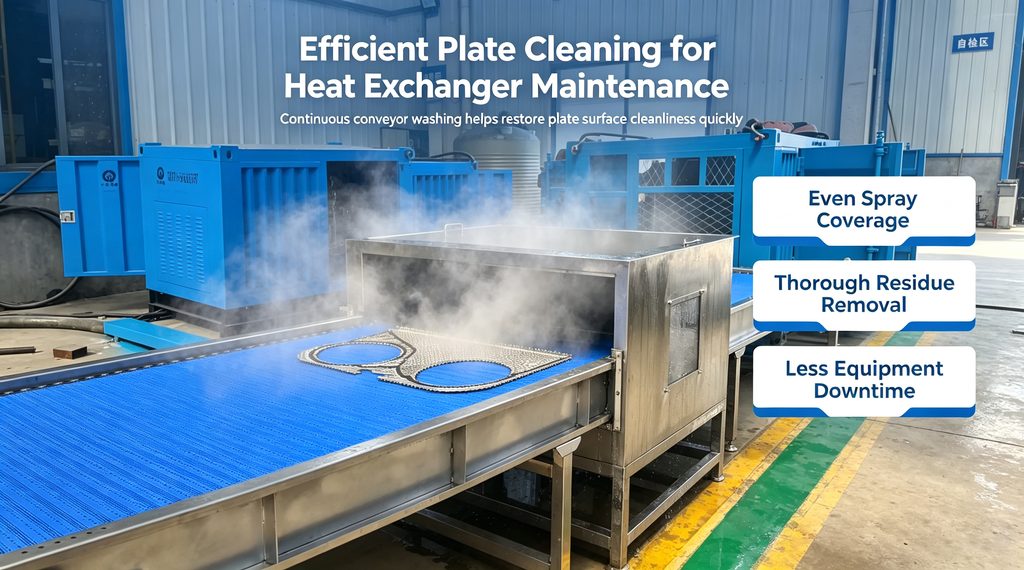

Our GYB-2 170/240 system is designed for professional plate heat exchanger descaling. It delivers 240 bar high-pressure water jet cleaning for plate heat exchangers, efficiently removing limescale, sludge, oil dirt and biofilm from plate surfaces to restore heat transfer efficiency. Furthermore, this plate heat exchanger descaling system relies on pure physical water blasting without chemical agents.
Long-term operation of plate heat exchangers causes scale, sediment and greasy deposits, which block flow channels, reduce heat exchange efficiency, raise system pressure and accelerate aging. Unlike corrosive chemical cleaning and slow manual scrubbing, this high-pressure cleaning machine adopts physical water jet descaling. With stable 240 bar pressure and large 170 L/min flow rate, it strips hard scale and flushes waste out thoroughly without dead corners. Therefore, it is chemical-free and non-damaging, safe for stainless steel and titanium alloy heat exchanger plates.
In addition, it is widely used for plate heat exchanger maintenance in chemical, HVAC, food & beverage and industrial cooling industries. As a result, it recovers heat exchange performance and extends service life of your equipment.
Main Technical Parameters
| Main Machine | ||
| Item | Specification | |
| Model | GYB-2 170/240 | |
| Rated Pressure | 240 bar | |
| Water Flow | 170 L/min | |
| Protection Class | IP55 | |
| Electric Motor | 75 kW, 380V/50Hz, 3-phase, IP55 (Voltage customizable) | |
| Overall Dimension of Cleaning System (L×W×H) | 5000 × 1700 × 1000 mm | |

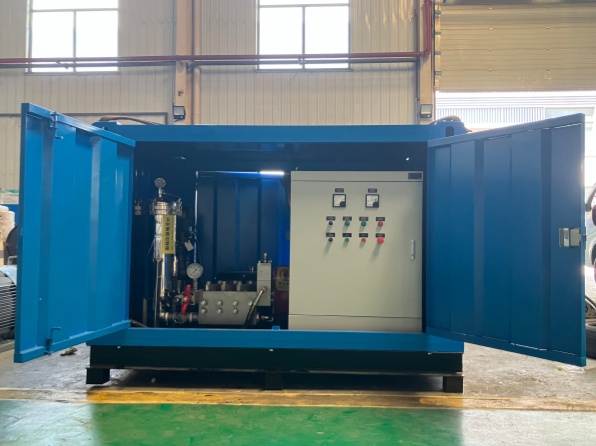

| Dimension of High Pressure Pump Unit (L×W×H) | 2000 × 1500 × 1600 mm | |
| Total Weight | 2700 kg | |
| Applicable Plate Width | 400–1200 mm plate heat exchanger | |
| HS Code | 842430 | |
| Accessories | ||
| Name | Specification | Qty |
| High pressure hose | 32Mpa rating, 2-layer steel wire winding, DN19mm | 30 m |

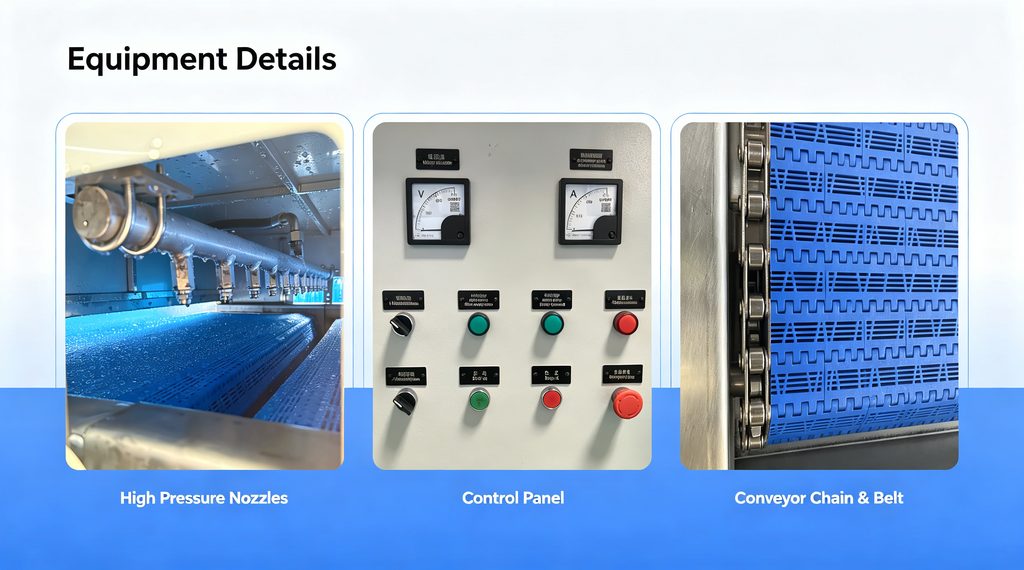

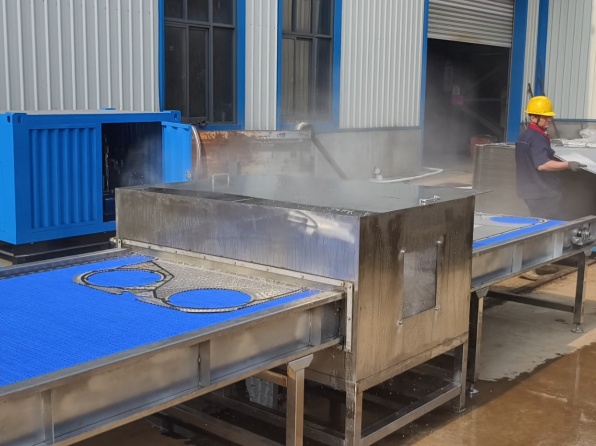

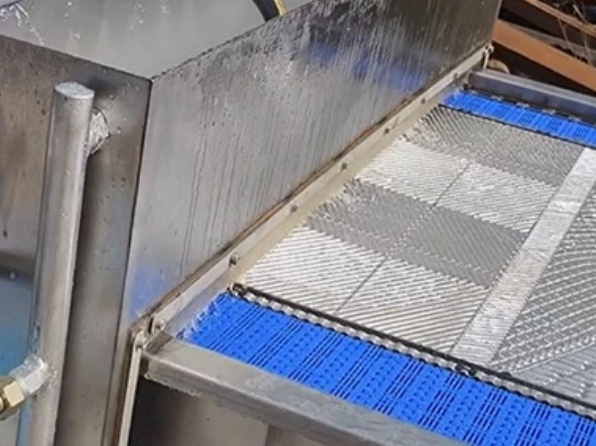

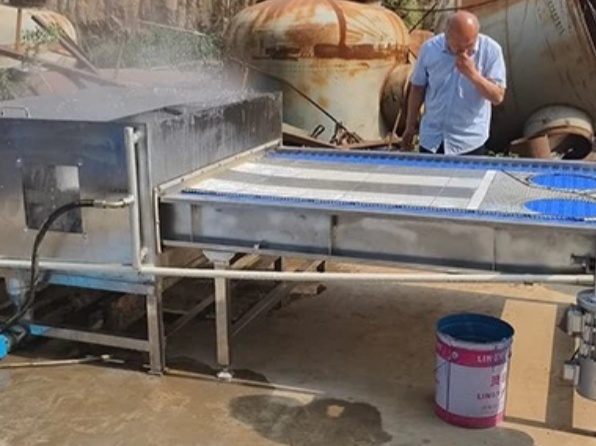

| Customized cleaning device | Pass-through conveyor belt; two rows of nozzles, 8 pcs per row; clean both sides; max plate width 1.2m | 1 set |

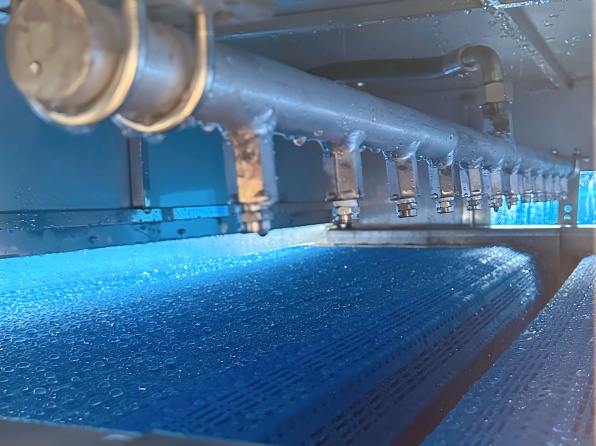

| High pressure nozzle | 1/4NPT, stainless steel | 16 pcs |
| Document Pack | Operating manual, packing list, etc. | 1 set |
Core Advantages
- 240 Bar High Pressure Jet for this plate heat exchanger cleaning system:
- Powerful water impact to break stubborn mineral scale, oil sludge and sediment on heat exchange plates for deep descaling.
- 170 LPM Large Flow:
- Large-volume water flow washes the narrow plate gaps continuously, quickly carry away stripped dirt and avoid re-adhesion, improve cleaning speed greatly.
- 75kW Stable VFD Power System:
- Supports long-time full-load continuous operation, stable output for heavy-duty industrial maintenance work.
- Physical Chemical-Free Cleaning:
- No chemical additives, no corrosion to stainless steel / titanium plates, lower operating cost.
- Customizable Cleaning Width:
- Suitable for plate heat exchangers from 400 mm up to 1200 mm width.

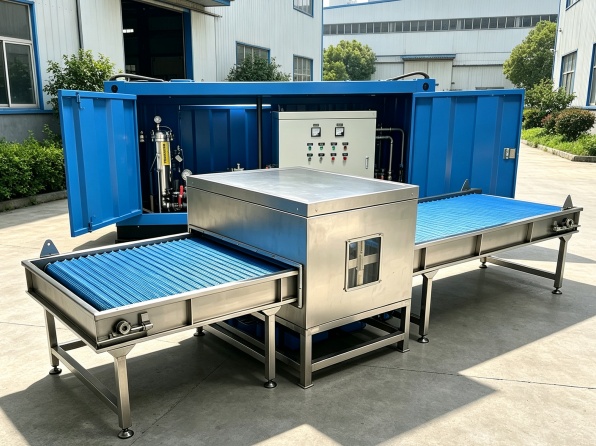

- All-in-one design:
- Main pump unit + conveyor cleaning fixture delivered together, easy installation.
Application Industries
- Chemical industrial heat exchange systems
- HVAC central air conditioning heat exchanger units
- Food & beverage processing production lines
- Industrial cooling circulation systems
- Stainless steel & titanium alloy plate heat exchanger routine maintenance
Get Custom Solution
Contact us to get technical drawings, layout plan and formal quotation for your plate heat exchanger cleaning project. We support customized voltage and fixture size to match your on-site heat exchanger specifications.
