Product Overview
- Our 350Bar High Pressure Water Jet Industrial Cleaner Hydro Blaster is a heavy-duty commercial and industrial cleaning solution built for high-intensity, large-scale cleaning operations. Engineered with dual industrial triplex-plunger high-pressure pump systems and four integrated hose reel spray gun sets, this hydro blaster delivers stable, ultra-high pressure cleaning power to tackle the toughest dirt, grime, cement residue, grease, and industrial deposits. Designed for 24/7 industrial continuous operation, it is the ultimate high-efficiency cleaning equipment for commercial fleets, manufacturing plants, construction sites, agricultural bases and municipal public infrastructure projects.
Parameters
| Main Machine | |
| Model | GYB-1 23/350 |
| Rate pressure | 350 bar / 5075 psi |
| Water flow | 23 L/min |
| Plunger diameter | 18 mm |
| Inpurt speed | 1480 rpm |
| Pump speed | 1480 rpm |
| Plunger stroke | 28 mm |
| Electric motor power | 30kw |
| Accessories | |
| High pressure hose | 30 m |
| Water spray gun | 1 set |
| Fan-shaped nozzle | 2 pcs |
| Cylinder-shaped nozzle | 2 pcs |
| Single hole rotating nozzle | 1 pc |
| Sandblaster nozzle | 1 pc |
| Spare Part | 1 set |
Built with industrial-grade core components, this high-pressure water jet cleaner features stable performance, strong power output and long service life, meeting strict industrial cleaning standards:

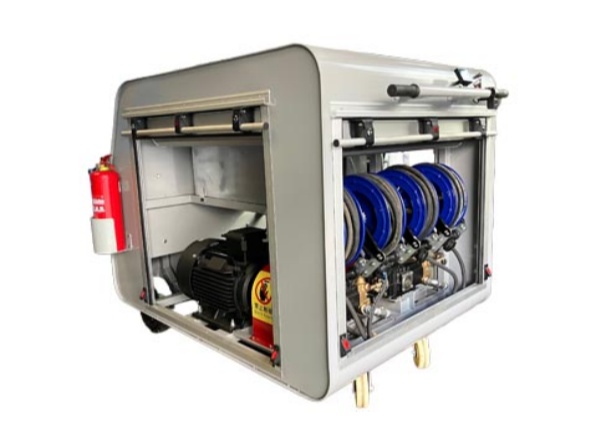

- Dual Triplex-Plunger Pump System
- Equipped with 2 professional triplex-plunger high-pressure pumps, the core pumping unit features high pressure resistance, stable water output and low failure rate, suitable for long-hour continuous industrial work.
- Superior Pressure & Flow Performance
- Each single pump supports a working pressure of 350 Bar (5,075 PSI) and a water flow of 23 Liters Per Minute (6.1 GPM). The overall system achieves a theoretical maximum flow of 46 LPM at 350 Bar, providing powerful and continuous cleaning impact.
- High-Power Industrial Motor
- Matched with 15 kW (20 HP) three-phase industrial electric motor for each pump. The high-torque motor ensures sufficient power output, strong load capacity and stable operation in harsh working environments, avoiding power attenuation during long-term use.

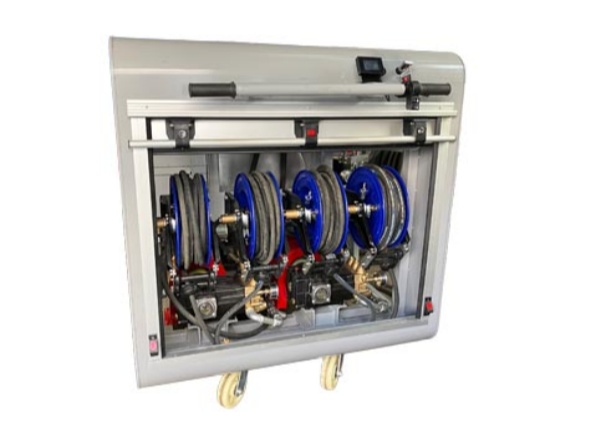

- Multi-Gun Synchronous Cleaning Design
- Comes with 4 integrated high-pressure hose reels, each equipped with an independent professional spray gun. The multi-gun simultaneous operation design greatly improves cleaning efficiency, supports multi-station synchronous work, and saves a lot of working time and labor costs.
Product Advantages
- High-Efficiency Mass Cleaning
- 350Bar ultra-high pressure instantly strips stubborn attachments such as cement scale, industrial grease, rust and mud, no need for manual polishing or chemical cleaning, environmentally friendly and efficient.
- Multi-Station Synchronous Operation
- Four independent hose reel and spray gun groups support simultaneous cleaning by multiple workers, doubling the cleaning efficiency and suitable for large-area and large-batch cleaning tasks.
- Industrial Durability
- Triplex-plunger pump and three-phase industrial motor are wear-resistant and corrosion-resistant, adapting to dusty, humid and high-load industrial working conditions, with low later maintenance cost.
- Wide Compatibility
- Adjustable high-pressure water flow and impact force, which can meet the fine cleaning of equipment and the high-strength derusting and decontamination of engineering machinery, with strong scene adaptability.
Wide Application Fields
This 350Bar hydro blaster is widely applicable to all kinds of commercial and industrial high-pressure cleaning scenarios, covering multiple industries:
- Industrial Maintenance
- Perfect for deep cleaning of factory floors, production machinery, plant operating equipment and structural steel, removing industrial oil stains, dust accumulation and production waste to keep the factory environment clean and equipment operating normally.
- Agriculture & Livestock Farming
- Suitable for large-scale barns, stables, poultry houses and various farm equipment cleaning, effectively removing livestock feces, feed residue and dirt, ensuring sanitary farming conditions.
- Construction Industry
- Specialized in cleaning construction heavy equipment such as excavators, bulldozers and cement mixers, as well as cleaning construction site mud and residue, solving the problem of difficult cleaning of construction machinery cement scaling.
- Municipal & Contract Cleaning
- Applicable for daily cleaning and maintenance of stadiums, parking garages, bridges and other public infrastructure, removing road dirt, dust and stubborn stains to improve urban environmental hygiene.
