Product Overview
Our Automatic IBC Tank Cleaning System is independently developed by Guangyuan Cleaning Equipment. In addition, it supports automatic washing for IBC totes, plastic barrels, steel oil drums, ink barrels and many other chemical raw material containers.
As a matter of fact, cleaning quality directly affects your overall production efficiency. Therefore, this system delivers fast, consistent and high-efficiency cleaning; in turn, it helps you cut operating costs and boost throughput.
Product Specifications
| Main Machine | |
| Model | GYB-1 50/180 |
| Water flow | 50 L/min |
| Rate Pressure | 180 bar / 18 MPa / 2600 Psi |
| Electric motor power | Variable frequency motor, 380V / 50Hz, 3-phase |
| Application | IBC container, oil drum, small reactor cleaning |
Why Choose Automatic IBC Tank Cleaning Instead of Manual Washing?
Traditional manual cleaning requires extra workers to dump residues and clean containers with handheld high-pressure guns. As a result, this method comes with several notable drawbacks:
- High labor costs and heavy workload for operators
- Safety hazards when staff come into contact with residual chemicals
- Hard-to-reach dead zones inside IBC totes, leading to inconsistent cleaning quality
- Unregulated wastewater leakage and poor environmental compliance
- Extended air-drying time, large footprint and slow container turnover
To solve these pain points, Guangyuan adopts 3D high-pressure water jet cleaning technology. Furthermore, our system integrates residue recovery, water management and disinfection modules to create a complete one-stop automatic cleaning workflow for safe, eco-friendly and high-efficiency IBC washing.
Working Modes & Production Line Structure

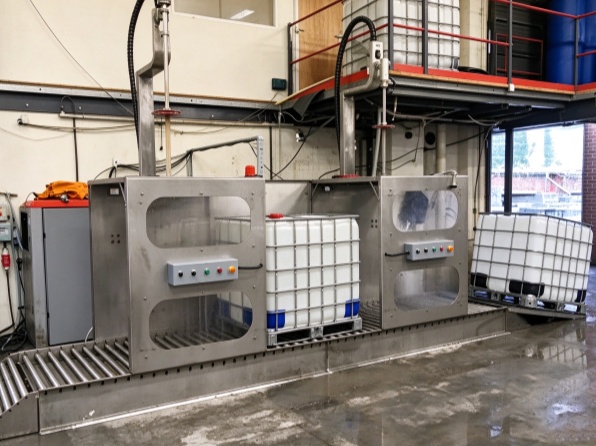

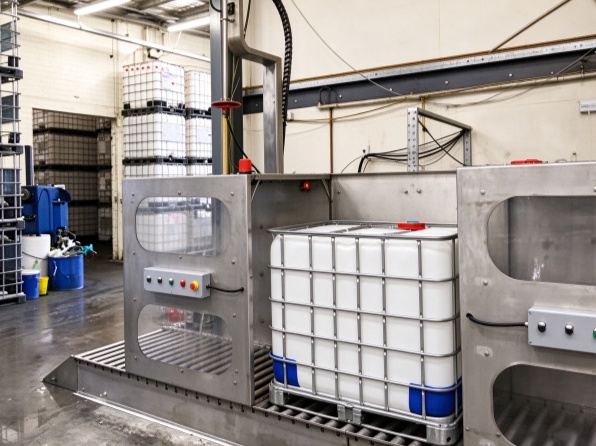

The system features a linear layout and includes upper and lower tote storage zones to support automatic loading and unloading. Specifically, a plate chain conveyor moves IBC totes sequentially through every processing station: loading → residual liquid recovery → external wash → internal wash → slag removal → rinsing → draining → disinfection → unloading.
4 optional cleaning programs available:
Internal cleaning only
Automatic residual liquid recovery, no manual dumping, higher safety & efficiency
360° 3D high-pressure washing head, no dead zones inside the ton barrel, stable cleaning quality
Automatic draining & water control, no extra drying area required
Reduce secondary contamination; barrels are dry and ready for direct reuse after processing
Advantages
- Custom-designed according to your site conditions; automatic washing & disinfection, stable and easy operation
- Fast cycle: around 2~4 minutes per IBC barrel
- Reduce labor dependence, solve cleaning worker recruitment difficulty and improve workshop environment
- Pressure range configurable from 5–500 bar to match different cleaning tasks
- Precision 360° three-dimensional cleaning head: strong impact force, low water consumption, full coverage without dead corners
- Only 1–2 operators needed, fast ROI, greatly improved output and cleaning consistency
Application Scope
Suitable for IBC storage & transport totes, plastic barrels, iron oil drums, ink barrels and various chemical raw material containers.
Get A Quote
Contact Guangyuan Cleaning Equipment for detailed layout plan, technical drawing and quotation of the IBC tank automatic cleaning system.
