Product Overview
This road marking removal jetting machine adopts ultra-high pressure water jet technology to strip road markings. Specifically, it can deliver up to 1500bar water pressure.
Unlike conventional options, such as mechanical, chemical and manual removal methods, hydro blasting will not damage asphalt or pavement. Moreover, the whole process is dust-free and eco-friendly, and it leaves behind a clean road surface. For this reason, this road marking removal jetting machine has become the preferred solution for road authorities.

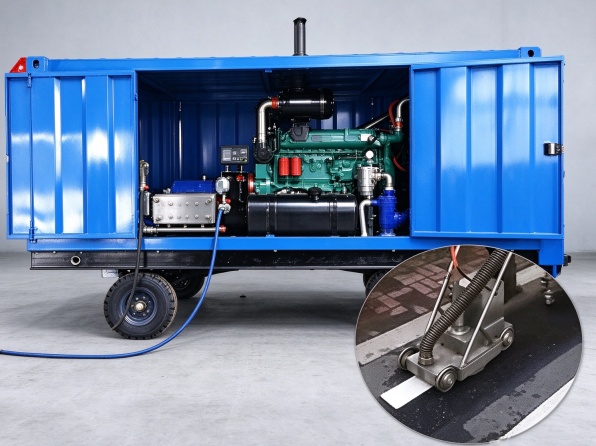

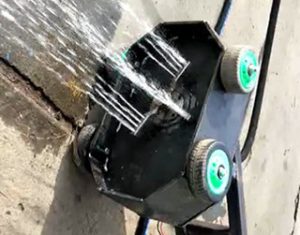

The machine connects the ultra-high pressure pump unit to a hand-push cleaning trolley via high-pressure hose. The rotating high-pressure water jet impacts, shears and breaks the structure of road markings. As you push the trolley forward, the marking layer is flushed away while keeping the original pavement intact.We also supply other high pressure water jet cleaning machines, such as industrial high pressure cleaners and tank cleaning machines.
Core Product Parameters
| Main Machine | |
| Model | GYB-5 85/1500 |
| Rate pressure | 1500 bar / 22200 psi |
| Water flow | 85 L/min |
| Plunger diameter | 26 mm |
| Inpurt speed | 1480 rpm |
| Pump speed | 405 rpm |
| Plunger stroke | 95 mm |

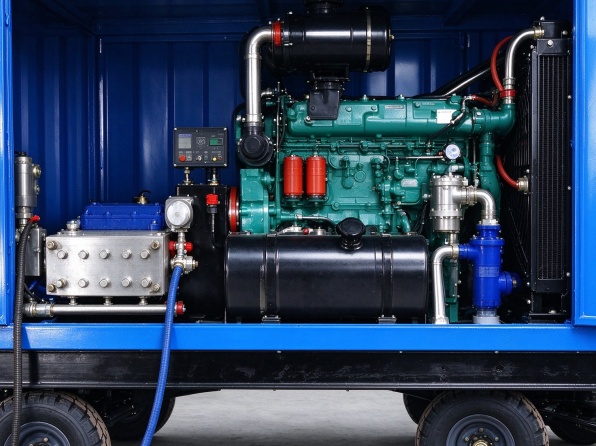

| Diesel engine drive | 225kw, 6-cylinder |
| Accessories | |

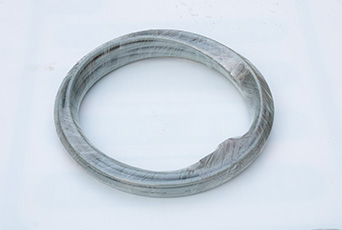

| High pressure hose | 30 m |
| Spare filter bag | 1 set |

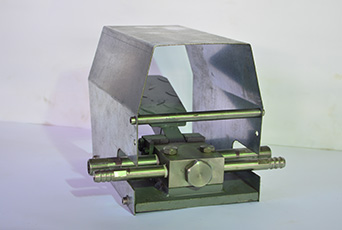

| Trolley rotating nozzle | 1 set |
| Explosive film | 2 pcs |
| Toolbox | 1 set |
| O-ring | 20 pcs |
Product Performance

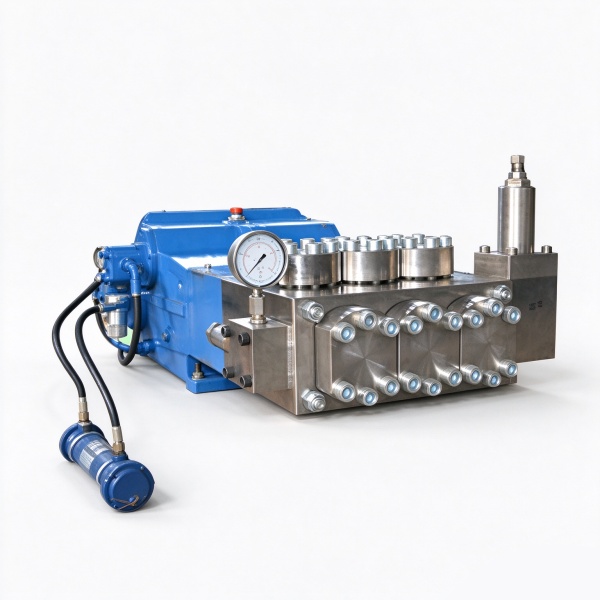

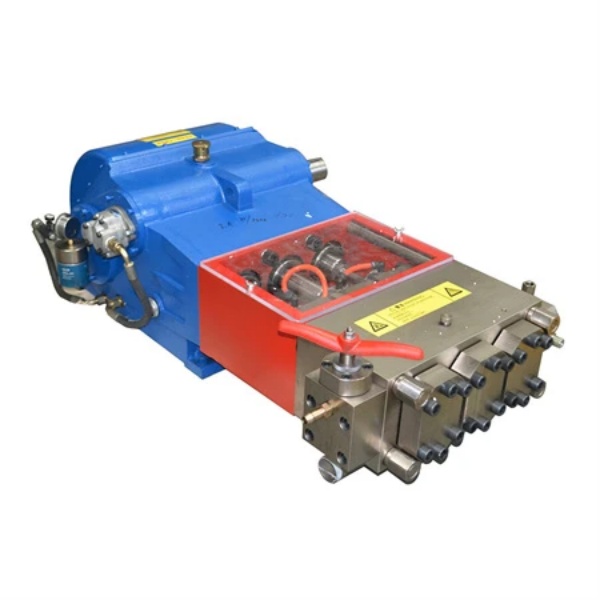

- Equipped with pump adopting Germany KAMAT technology for stable and reliable pressure, easy pressure adjustment.
- Built-in high-pressure alarm and high-temperature alarm for water protection.
- Dual inlet water filters to capture fine particles, greatly extending pump service life.
- High power output for heavy-duty continuous operation.
- Eco-friendly water blasting method, no chemical contaminants, dustless operation.
- Adjustable working parameters: jet pressure, travel speed, target distance and rotary speed to match different marking thickness.
Advantages of Water Blasting Road Marking Removal
- No damage to asphalt or concrete pavement
- Dust-free, no chemical additives, environmentally safe
- Higher efficiency and cleaner result than abrasive blasting
- Simple post-job cleanup
- Wide application: road marking, rust removal, paint stripping, industrial descaling
- Low long-term road maintenance cost
- Adjustable working parameters to meet different working conditions
Application Fields
Road marking removal, airport runway glue & oil removal, pavement cleaning. Safe for asphalt and concrete surfaces.
Heat exchanger tube cleaning, condenser tube cleaning, reactor tank, filter screen, boiler, storage tank descaling & fouling removal. Widely used in starch factories, steel mills, chemical plants and power plants.
Cement pipeline cleaning, grease removal on equipment surface, concrete residue cleaning, mixing drum & mixing tank cleaning, tar and agglutinant stripping.
Mixing tank cleaning, grease, fouling and residual material removal, evaporator & boiler cleaning.
Ship hull rust removal, old paint stripping, marine fouling & sea creature removal from hull bottom.
Heat exchanger descaling, warehouse dirt cleaning, rust and oxide skin removal on tanks, pipes and vessels.
Working Principle

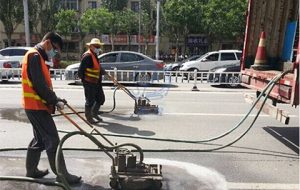

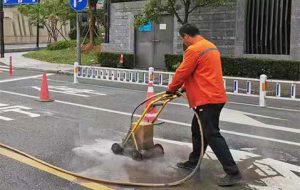

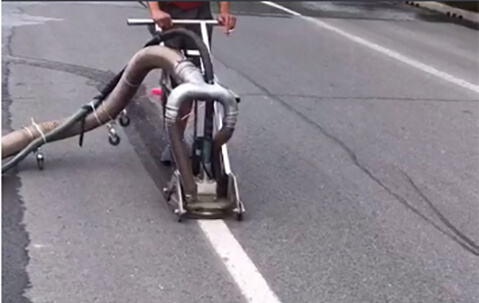

This hydro jet road marking remover relies on ultra-high pressure water flow produced by the high-pressure pump set. Firstly, water travels through the high-pressure hose to the hand-push trolley. Then, it sprays out at high velocity through rotating nozzles. As a result, the ultra-high pressure water jet generates impact force and shear force to break down traffic marking structures. Operators push the trolley along the road surface, so markings get fully stripped while the underlying pavement remains intact.
In addition, the final cleaning performance depends on four key factors: jet pressure, trolley travel speed, target distance and rotary joint speed. Therefore, operators can tweak these parameters based on the real thickness of road markings, so as to strike a good balance between cleaning quality and working efficiency.
