Description

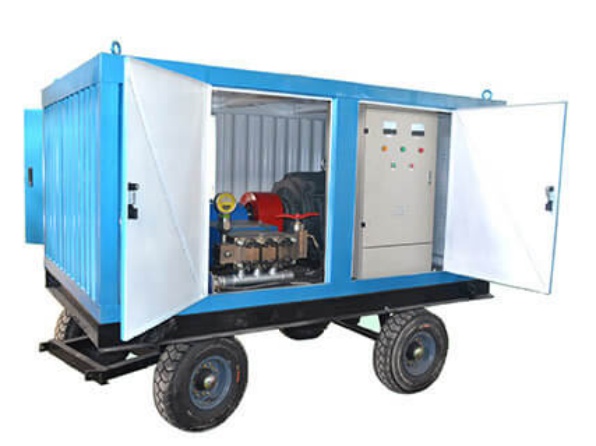

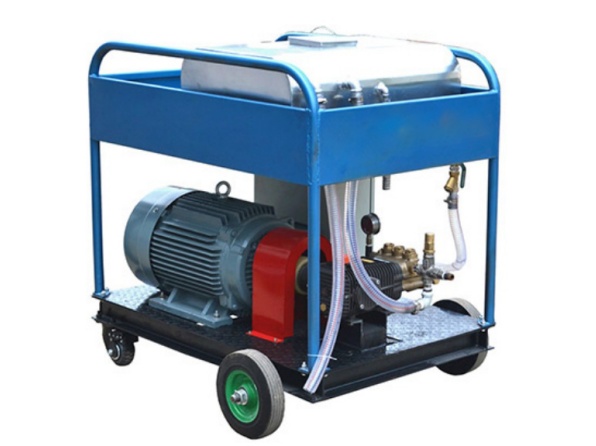

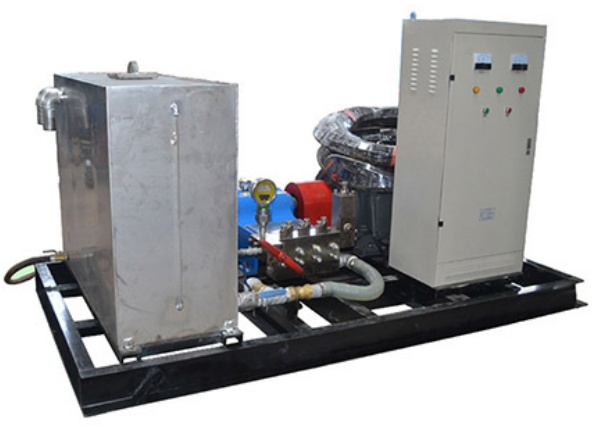

- Our water blasting machine handles heavy-duty surface cleaning jobs, including concrete roughening, rust stripping and paint removal. Besides, it also cleans power plant pipes, shipyard hulls, highway guardrails and road marks. Therefore, our GY-85/500 model provides 500 bar (7200 psi) pressure and 85 L/min water flow. You can deploy this unit across many industrial heavy cleaning projects.
Parameters
| Main technical parameters | |
| Model | GY- 85/500 |
| Rate Pressure | 500 bar / 7200 psi |
| Water flow | 85 L/min |
| Plunger dia. | 32 mm |
| Inpurt speed | 1480 rpm |
| Pump speed | 405 rpm |
| Stock | 95 mm |
| Electric power | 90kw, 3Phase, 380v/50Hz; IP55 |
| Pressure regulating valve | 0-500bar can be adjust |
| Safety valve | |
| Pressure gauge | Data 0-1000bar |
| Electric cabinet | Match the electric motor |
| Coupling | Connect the electric motor with the pump |
| Water tank | Volume 400L |
| Ball Valve | Control the nozzle working |
| Y-type Filter | Water inlet filter |
| Movable chassis | With 4 small wheels, easy to be moved |
| High pressure hose | DN10; Bear Pressure 70Mpa |
| Water spray gun | Italy PA Brand, 560Bar Pressure |
| Fan-shaped nozzle | Connect with the water spray gun |
| Cylinder-shaped nozzle | Connect with the water spray gun |
| Wet sand spray nozzle for rust paint remove | |
| Sand inlet hose | |
| Sand tank | Volume 150L |
Applications
- Heavy‑duty surface dirt cleaning
- Concrete surface roughening
- Rust & paint removal
- Power plant pipe cleaning
- Shipyard boat cleaning
- Highway guardrail cleaning
- Road mark removal
Related Cleaning Solutions
- This high-pressure water blasting machine uses pure water jet cleaning without abrasives. It delivers strong cleaning power without damaging the base material. You can also explore our hydrostatic testing system for related pressure test equipment.
